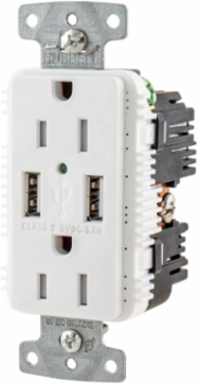

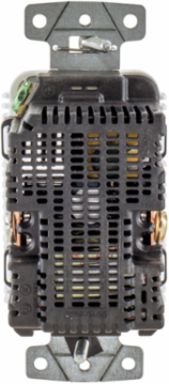

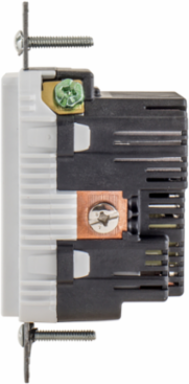

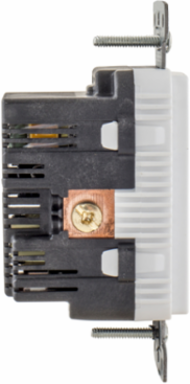

Hubbell Wiring Device-Kellems USB15A5W USB Charger Duplex Receptacle, 15A, 125V, 2-Pole, 2 USB Ports, White
- MPN: USB15A5W
- UPC: 883778306891
- PPN: HBL-USB15A5W
- UNSPSC: 39121406
CAD
$75.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
USB Charger Duplex Receptacle, 15A 125V,2-Pole 3-Wire Grounding, 5-15R, 2) 5A USB Ports, White
Features
- High Power 5 Amp, 5 Volt USB Output
- Two Type A USB Ports
- Tamper Resistant Commercial Grade Duplex Compatible
- USB Ports Rated 10,000 Cycles
Specifications
Key Specifications
| Engineering Drawing 1 Display Text | USB15A5W AutoCAD Drawing |
|---|---|
| General Literature Asset 2 Display Text | Hubbell Marine Full Line Catalog |
| Country of Origin | China |
| Width | 2.100 in |
| NEMA Rating | 5-15R |
| Number of Wires | 3-Wire |
| Voltage Rating Description | 125 V |
| Number Of Poles | 2-Pole |
| Style | Style Line Decorator |
| Freight Class Code | 06162000 |
| Image Actual Or Representative | A |
| Replaced Catalog Number | USB15X2W |
| Series | Heavy Duty |
| BOX SIZE | 4.400x10.900x4.500 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00883778306891 |
| Case - Total Units | 50 EA |
| Pallet - GTIN - Package | 70883778306890 |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
| General Literature Asset 1 Display Text | USB Charging Centers |
|---|---|
| General Literature Asset 3 Display Text | Entertainment Product Solution Guide |
| Current / Amperage Rating | 15 A |
| Color | White |
| Number of Poles | 2-Pole |
| Type | Two Type A USB Ports |
| Nema Rating | 5-15R |
| Number Of Wires | 3-Wire |
| Class Code | A04 |
| Harmonization Code | 8536690200 |
| MSDS Flag | No |
| Sub Class Code | A04A062 |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 4.100 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 EA |
| Case Weight | 21.000 lb. |
| Pallet Height | 47.000 in |
| Pallet Weight | 1470.000 lb. |
| NAICS Code | 335931A102 |
