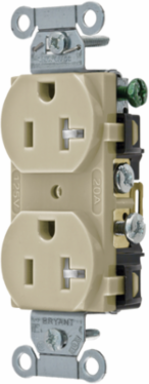

Bryant CBRS20ITR Duplex Receptacle Tamper Resistant 20A 125V 5-20R Ivory
Bryant CBRS20ITR Duplex Receptacle Tamper Resistant 20A 125V 5-20R Ivory
- MPN: CBRS20ITR
- UPC: 781786410718
- PPN: HBL-CBRS20ITR
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$28.89/ EA
Description
Straight Blade Devices, Receptacles, Duplex, Tamper-Resistant Commercial Grade, 20A 125V,2- Pole 3-Wire Grounding, 5-20R, Ivory, Single Pack
Features
- Duplex
- Tamper-Resistant Commercial Grade
- 20A 125V
- 2- Pole 3-Wire Grounding
- 5-20R
- Tamper Resistant
Specifications
Specifications
- Country of Origin
- CN
- Width
- 1.400 in
- Amperage Rating
- 20 A
- Color
- Ivory
- NEMA Rating
- 5-20R
- Number of Wires
- 3-Wire
- Special Features
- Tamper Resistant
- Voltage Rating
- 125 V
- Wire Size
- #14 AWG to #12 AWG
- Weight
- 0.2 lb.
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Style
- Smooth Face
- Description - Invoice
- RCP, SB, COM TAMP RES, 20A 125V, 5-20,IV
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Mounting
- Material
- Composite
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 1.9 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 19.850 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 43.000 in
- Pallet Weight
- 1687.250 lb.
Current / Amperage Rating20 A
Each - Width1.400 in
ApplicationCommercial Specification Grade
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles2-Pole
PhaseSingle Phase
TypeDuplex Receptacle
Wattage2500
Voltage Rating Description125 V
ConnectivityBack and Side Wired
Nema Rating5-20R
Number Of Wires3-Wire
Class CodeA04
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA04A060
Current Rating20 A
SeriesCommercial
BOX SIZE2.400x8.100x4.400 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack781786410718
Case - Total Units100 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70781786410717
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
