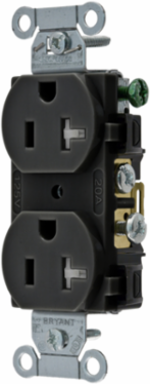

Bryant CBRS20BLKTR Duplex Receptacle 20A 125V Tamper-Resistant 2-Pole 3-Wire Black
Bryant CBRS20BLKTR Duplex Receptacle 20A 125V Tamper-Resistant 2-Pole 3-Wire Black
- MPN: CBRS20BLKTR
- UPC: 781786410695
- PPN: HBL-CBRS20BLKTR
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$29.77/ EA
Description
Straight Blade Devices, Receptacles, Duplex, Tamper-Resistant Commercial Grade, 20A 125V,2- Pole 3-Wire Grounding, 5-20R, Black, Single Pack
Features
- Duplex
- Tamper-Resistant Commercial Grade
- 20A 125V
- 2- Pole 3-Wire Grounding
- 5-20R
- Tamper Resistant
Specifications
Specifications
- Country of Origin
- China
- Width
- 1.400 in
- Application
- Commercial Specification Grade
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Type
- Duplex Receptacle
- Wattage
- 2500
- Voltage Rating Description
- 125 V
- General Literature Asset 1 Display Text
- General Literature - Tamper-Resistant and Weather Resistant Receptacles
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Style
- Smooth Face
- Description - Invoice
- RCP, SB, COM TAMP RES, 20A 125V, 5-20,BK
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Mounting
- Material
- Composite
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 1.9 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 20.000 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating20 A
Amperage Rating20 A
ColorBlack
NEMA Rating5-20R
Number of Wires3-Wire
Special FeaturesTamper Resistant
Voltage Rating125 V
Wire Size#14 AWG to #12 AWG
Weight0.2 lb.
ConnectivityBack and Side Wired
Nema Rating5-20R
Number Of Wires3-Wire
Class CodeA04
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA04A060
Current Rating20 A
SeriesCommercial
BOX SIZE2.400x8.100x4.500 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack781786410695
Case - Total Units100 EA
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Yes
