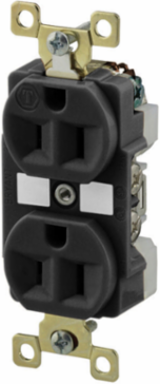

Bryant BRY5262BLKWR Duplex Weather Resistant Receptacle, 15A 125V, 2-Pole 3-Wire, Black
- MPN: BRY5262BLKWR
- UPC: 781786670518
- PPN: HBL-BRY5262BLKWR
- UNSPSC: 39121406
CAD
$62.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Straight Blade Devices, Receptacles, Duplex, Weather Resistant,Commercial/Industrial Grade, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Black, Single Pack
Features
- Duplex
- Weather Resistant
- Commercial/Industrial Grade
- 15A 125V
- 2-Pole 3-Wire Grounding
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Dimensions
- 3.28 in x 1.54 in x 1.16 in
- Length
- 3.28 in
- Application
- Extra Heavy Duty Industrial Specification Grade
- Environmental Conditions
- Weather Resistant
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Special Features
- Weather Resistant
- Voltage Rating
- 125 V
- Wire Size
- #14 AWG to #12 AWG
- Weight
- 0.25 lb.
- Connectivity
- Back and Side Wired
- Nema Rating
- 5-15R
- Number Of Wires
- 3-Wire
- Class Code
- A04
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A04A020
- Current Rating
- 15 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.500 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10
- Each - Pack Description
- Each
Current / Amperage Rating15 A
Height1.16 in
Amperage Rating15 A
ColorBlack
NEMA Rating5-15R
Number of Wires3-Wire
Size3.28 in x 1.54 in x 1.16 in
TypeDuplex Receptacle
Wattage1875
Voltage Rating Description125 V
Width1.54 in
Display SizeStandard Sized Product
Number Of Poles2-Pole
StyleFinder Groove Face
Description - InvoiceWR RCPT, DUP, HD IND GRD, 15A 125V, BK
Harmonization Code8536698000
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
SeriesExtra Heavy Duty
BOX SIZE2.548x8.418x4.918 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack781786670518
Case Weight25.000 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
