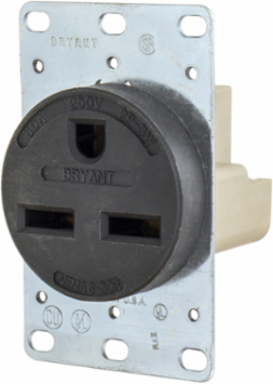

Bryant 9630FR Industrial Grade Flush Mount Receptacle, 30A 250V, 2-Pole 3-Wire, Black
- MPN: 9630FR
- UPC: 781786677289
- PPN: HBL-9630FR
- UNSPSC: 39121406
CAD
$82.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Straight Blade Devices, Receptacles, Flush Mount Single,Commercial/Industrial Grade, Reinforced Thermoplastic Polyester, 30A 250V, 2-Pole 3-Wire Grounding, 6-30R, Black, Single Pack
Features
- Flush Mount Single
- Commercial/Industrial Grade
- Reinforced Thermoplastic Polyester
- 30A 250V
- 2-Pole 3-Wire Grounding
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- General Literature Asset 1 Display Text
- General Literature - Heavy Duty Straight Blade
- Current / Amperage Rating
- 30 A
- Industry Standard(s)
- WR Rating
- Amperage Rating
- 30 A
- Color
- Black
- NEMA Rating
- 6-30R
- Number of Wires
- 3-Wire
- Special Features
- Standard Product
- Type
- Single Receptacle
- Wattage
- 7500
- Voltage Rating Description
- 250 V
- Connectivity
- Pressure Terminal Screws
- Nema Rating
- 6-30R
- Number Of Wires
- 3-Wire
- Class Code
- A04
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A04A080
- Current Rating
- 30 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 11.500 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 25 EA
- Each - Pack Description
- Each
Country of OriginUnited States
Width2.500 in
Standards - RoHS Compliance StatusCM
ApplicationIndustrial Grade
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles2-Pole
PhaseSingle Phase
StandardWR Rating
Voltage Rating250 V
Wire Size#10 AWG to #6 AWG
Weight0.45 lb.
Display SizeStandard Sized Product
Number Of Poles2-Pole
StyleSmooth Face
Description - InvoiceRCPT, 30A 250V, 6-30R
Harmonization Code8536690200
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
SeriesHeavy Duty
BOX SIZE7.900x13.700x12.900 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack781786677289
Case Weight10.800 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
