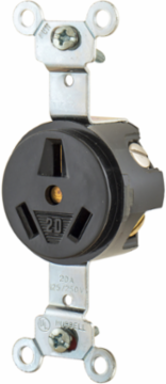

Bryant 9326 Commercial Grade Flush Mount Receptacle, 20A 250V, 3-Pole 3-Wire, Black
- MPN: 9326
- UPC: 781786632462
- PPN: HBL-9326
- UNSPSC: 39121406
CAD
$84.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Straight Blade Devices, Receptacles, Flush Mount Single, Commercial/Industrial Grade, Thermoset, Side Wired, 20A 250V, 3-Pole 3-Wire Non- Grounding, 10-20R, Black, Single Pack
Features
- Flush Mount Single
- Commercial/Industrial Grade
- Thermoset
- Side Wired
- 20A 250V
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 2.200 in
- Amperage Rating
- 20 A
- Color
- Black
- NEMA Rating
- 10-20R
- Number of Wires
- 3-Wire
- Special Features
- Standard Product
- Voltage Rating
- 250 V
- Wire Size
- #14 AWG to #12 AWG
- Weight
- 0.1 lb.
- Display Size
- Standard Sized Product
- Number Of Poles
- 3-Pole
- Style
- Finder Groove Face
- Description - Invoice
- RCPT, 20A 125/250V, 10-20R
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Mounting
- Series
- Heavy Duty
- BOX SIZE
- 2.500x7.600x4.100 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 781786632462
- Case - Total Units
- 100 EA
- Each - Pack Description
- Each
Current / Amperage Rating20 A
Standards - RoHS Compliance StatusCM
ApplicationIndustrial Grade
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles3-Pole
PhaseSingle Phase
TypeSingle Receptacle
Wattage5000
Voltage Rating Description250 V
ConnectivitySide Wired Only
Nema Rating10-20R
Number Of Wires3-Wire
Class CodeA04
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA04A020
Current Rating20 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight10.000 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- No
