Bryant RCT221W 20A Flush Mount Kitchen Counter Receptacle, 1 Duplex Outlet, White, 4.20 Inch x 4.20 Inch x 6.48 Inch
Bryant RCT221W 20A Flush Mount Kitchen Counter Receptacle, 1 Duplex Outlet, White, 4.20 Inch x 4.20 Inch x 6.48 Inch
- MPN: RCT221W
- UPC: 883778309601
- PPN: HBL-RCT221W
- UNSPSC: 39121309
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$342.08/ EA
Description

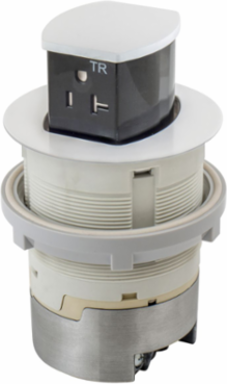

20A Kitchen Counter Receptacle, Flush Mount, White
Features
- Spill water tested
- UL Listed for countertop installation.
- Permanent installation ready (suitable for MC cable or non-metallic sheath cable
- Push down to pop-up function is rated for a minimum of 10,000 cycles
- Easy installations - simply drop in and tighten.
- Flush Mount
Specifications
Specifications
- Country of Origin
- China
- Dimensions
- 4.20 in x 4.20 in x 6.48 in
- Application
- Power on Counter Top
- Color
- White
- Height
- 6.48 in
- Material
- 221 Meunt
- Number of Outlet
- 1 Duplex
- Special Features
- Flush Mount
- Sub Brand
- Furniture Boxes
- Width
- 4.20 in
- General Literature Asset 1 Display Text
- Tri-Power Pop-up Receptacles Quick Installation Setup Guide
- Construction Material - Main
- 221 Meunt
- Mounting Type
- In Kitchen Counter Top
- Number Of Outlets
- 1 Duplex
- Number Of Wires
- 3
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Series
- Countertop Receptacle
- BOX SIZE
- 6.500x22.600x9.400 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 00883778309601
- Case Weight
- 16.450 lb.
- Pallet Height
- 45.500 in
- Pallet Weight
- 921.200 lb.
Current / Amperage Rating20 A
Industry Standard(s)UL
Cable EntryKos in Bottom
ConstructionFabricated
Length4.20 in
MountingIn Kitchen Counter Top
Size4.20 in x 4.20 in x 6.48 in
StandardUL
TypePower Only
Voltage Rating Description125 V
General Literature Asset 2 Display TextTri-Power Pop-up Receptacles Quick Installation Setup Guide
Construction Material -Main partFabricated
Nema Rating5-20R
Number Of Poles2
StyleFlush
Harmonization Code8536698000
MSDS FlagNo
Base Unit of MeasureEA
Carton - Gross Weight per Pack15.500 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Pallet - GTIN - Package70883778309600
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Contact Manufacturer
