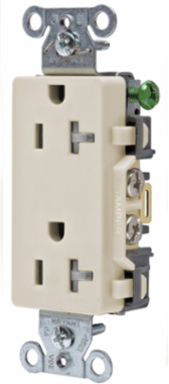

Bryant DRS20LATR Commercial Grade Tamper-Resistant Duplex Receptacle 20A 125V Light Almond
- MPN: DRS20LATR
- UPC: 781786144217
- PPN: HBL-DRS20LATR
- UNSPSC: 39121406
CAD
$30.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Straight Blade Devices, Receptacles, Tamper- Resistant Duplex, Decorator, Commercial/Industrial Grade, 20A 125V, 2- Pole 3-Wire Grounding, 5-20R, Light Almond, Single Pack
Features
- Tamper- Resistant Duplex
- Decorator
- Commercial/Industrial Grade
- 20A 125V
- 2- Pole 3-Wire Grounding
- Tamper Resistant
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Width
- 1.550 in
- Application
- Commercial Grade
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Type
- Duplex Receptacle
- Wattage
- 2500
- Voltage Rating Description
- 125 V
- General Literature Asset 1 Display Text
- General Literature - Tamper-Resistant and Weather Resistant Receptacles
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Style
- Decorator
- Description - Invoice
- RCPT, SB,DECO TAMP RES,20A 125V,5-20R,LA
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Mounting
- Material
- Composite
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 1.9 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10
- Each - Pack Description
- Each
Current / Amperage Rating20 A
Amperage Rating20 A
ColorLight Almond
NEMA Rating5-20R
Number of Wires3-Wire
Special FeaturesTamper Resistant
Voltage Rating125 V
Wire Size#14 AWG to #12 AWG
Weight0.15 lb.
ConnectivityBack and Side Wired Terminal Screws
Nema Rating5-20R
Number Of Wires3-Wire
Class CodeA04
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA04A060
Current Rating20 A
SeriesCommercial
BOX SIZE2.500x8.100x4.400 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack781786144217
Case Weight20.000 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
