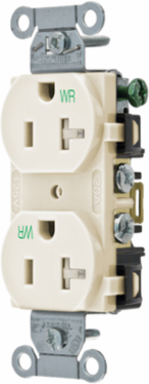

Hubbell Wiring Device-Kellems BR20LAWRTR Tamper & Weather-Resistant Duplex Receptacle, 20A 125V, Light Almond
- MPN: BR20LAWRTR
- UPC: 783585144733
- PPN: HBL-BR20LAWRTR
- UNSPSC: 39121406
CAD
$25.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Straight Blade Devices, Receptacles, Tamper and Weather-ResistantDuplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Light Almond, Single Pack.
Features
- Weather-resistance complies with national electrical code requirements
- Tamper-resistant shutter complies with national electrical code requirements
- Smooth face
- Wrap-around galvanized steel strap
- Triple wipe contacts
- Tamper and Weather Resistant- Self Grounding
Specifications
Key Specifications
- Country of Origin
- China
- Width
- 1.200 in
- Industry Standard(s)
- Certified to CSA C22.2, No. 42;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
- Amperage Rating
- 20 A
- Color
- Light Almond
- Environmental Conditions
- Weather Resistant
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Standard
- Certified to CSA C22.2, No. 42;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
- Voltage Rating
- 125 V
- Wire Size
- #12 AWG to #10 AWG
- Weight
- 0.15 lb.
- Connectivity
- Back and Side Wired
- Nema Rating
- 5-20R
- Number Of Wires
- 3-Wire
- Style
- Smooth Face
- Description - Invoice
- WTR/TAMP, COM GRD, 20A 125V, 5-20R, LA
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Mounting
- Material
- Nylon
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 1.7 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 15.000 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating20 A
Horsepower - Maximum1
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V-2;Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
ApplicationCommercial Specification Grade
Dielectric StrengthWithstands 2,000V minimum
NEMA Rating5-20R
Number of Wires3-Wire
Special FeaturesTamper and Weather Resistant- Self Grounding
TypeTamper-Resistant, Weather Resistant
Wattage2500 W
Voltage Rating Description125 V
General Literature Asset 1 Display TextEdgeConnect™ Technology FAQ
Display SizeStandard Sized Product
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Class CodeA04
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA04A060
Current Rating20 A
SeriesCommercial Specification Grade
BOX SIZE2.400x8.100x4.300 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585144733
Case - Total Units100 EA
Each - Pack DescriptionEach
NAICS Code335931A102
