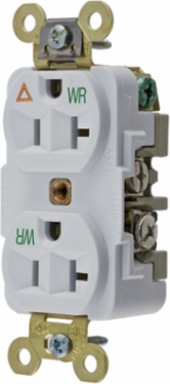

Hubbell Wiring Device-Kellems IG5362WWR Isolated Ground Weather Resistant Duplex Receptacle 20A 125V 5-20R
Hubbell Wiring Device-Kellems IG5362WWR Isolated Ground Weather Resistant Duplex Receptacle 20A 125V 5-20R
- MPN: IG5362WWR
- UPC: 783585320458
- PPN: HBL-IG5362WWR
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$62.05/ EA
Description
Straight Blade Devices, Receptacles, Weather Resistant Duplex, Commercial/Industrial Grade, Isolated Ground, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, White
Features
- Triangle marking on face indicates isolated ground
- Weather-resistance complies with national electrical code requirements
- Slender/compact design
- Isolated Ground and Weather Resistant
Specifications
Specifications
- Country of Origin
- PR
- Dimensions
- 3.28 in x 1.33 in x 1.05 in
- Height
- 1.05 in
- Industry Standard(s)
- Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. WC596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0;Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
- Application
- Extra Heavy Duty Specification Grade
- Dielectric Strength
- Withstands 2,000V minimum
- NEMA Rating
- 5-20R
- Number of Wires
- 3-Wire
- Size
- 3.28 in x 1.33 in x 1.05 in
- Standard
- Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. WC596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
- Voltage Rating
- 125 V
- Wire Size
- #12 AWG to #10 AWG
- Weight
- 0.2 lb.
- Connectivity
- Back and Side Wired Screw Terminals
- Nema Rating
- 5-20R
- Number Of Wires
- 3-Wire
- Style
- Finder Groove Face
- Description - Invoice
- WR RCPT, DUP, SB, IG HG, 20A 125V, WH
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Mounting
- Material
- Nylon
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Lowest Level UOM
- Each
Current / Amperage Rating20 A
Each - Width1.790 in
Horsepower - Maximum1
Length3.28 in
Amperage Rating20 A
ColorWhite
Environmental ConditionsWeather Resistant
Number of Poles2-Pole
PhaseSingle Phase
Special FeaturesIsolated Ground and Weather Resistant
TypeStandard Duplex
Wattage2500 W
Voltage Rating Description125 V
Width1.33 in
Display SizeStandard Sized Product
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Class CodeA04
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA04A060
Current Rating20 A
SeriesHeavy Duty
BOX SIZE3.238x9.178x4.298 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585320458
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- No
