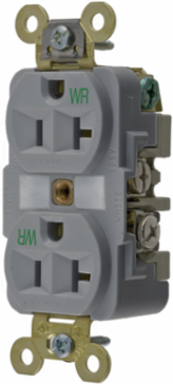

Hubbell Wiring Device-Kellems HBL5362GYWR Weather Resistant Duplex Receptacle 20A 125V, 2-Pole 3-Wire, Gray
- MPN: HBL5362GYWR
- UPC: 783585320571
- PPN: HBL-HBL5362GYWR
- UNSPSC: 39121406
CAD
$70.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Straight Blade Receptacle, Weather Resistant,Duplex, Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R
Features
- Weather-resistance complies with national electrical code requirements
- Finder Groove Face
- One-piece brass integral ground strap
- Deep body design with circuit ID face
- Weather Resistant- Self Grounding
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 3.28 in x 1.65 in x 1.19 in
- Horsepower - Maximum
- 1
- Length
- 3.28 in
- Standards - RoHS Compliance Status
- CM
- Application
- Extra Heavy Duty Specification Grade
- Dielectric Strength
- Withstands 2,000V minimum
- NEMA Rating
- 5-20R
- Number of Wires
- 3-Wire
- Size
- 3.28 in x 1.65 in x 1.19 in
- Standard
- Certified to CSA 22.2, No. 42 File 285;Fed. Spec. WC596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
- Voltage Rating
- 125 VAC
- Wire Size
- #12 AWG to #10 AWG
- Weight
- 0.25 lb.
- Engineering Drawing 1 Display Text
- HBL5362GYWR AutoCAD Drawing
- General Literature Asset 2 Display Text
- Pulp & Paper Solutions
- Connectivity
- Back and Side Wired Screw Terminals
- Nema Rating
- 5-20R
- Number Of Wires
- 3-Wire
- Style
- Finder Groove Face
- Description - Invoice
- WR RCPT, DUP, SB, HD SPEC, 20A 125V, GY
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Mounting
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.95 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 30.950 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating20 A
Height1.19 in
Industry Standard(s)Certified to CSA 22.2, No. 42 File 285;Fed. Spec. WC596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0;Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Amperage Rating20 A
ColorGray
Environmental ConditionsWeather Resistant
Number of Poles2-Pole
PhaseSingle Phase
Special FeaturesWeather Resistant- Self Grounding
TypeWeather Resistant
Wattage2500 W
Voltage Rating Description125 V
Width1.65 in
General Literature Asset 1 Display TextEdgeConnect™ Technology FAQ
General Literature Asset 3 Display TextPULP & PAPER SOLUTIONS
Display SizeStandard Sized Product
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Class CodeA04
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA04A020
SeriesExtra Heavy Duty
BOX SIZE3.600x9.900x4.600 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585320571
Case - Total Units100 EA
Each - Pack DescriptionEach
NAICS Code335931A102
