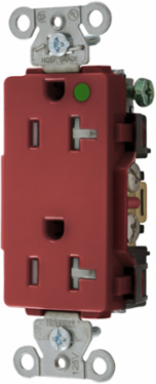

Hubbell Wiring Device-Kellems 2182REDTRA Decorator Duplex Receptacle 20A 125V 2-Pole 3-Wire Red
Hubbell Wiring Device-Kellems 2182REDTRA Decorator Duplex Receptacle 20A 125V 2-Pole 3-Wire Red
- MPN: 2182REDTRA
- UPC: 783585542027
- PPN: HBL-2182REDTRA
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$39.77/ EA
Description
Straight Blade Devices, Tamper Resistant Decorator Duplex Receptacle, Hospital Grade, Hubbell-Pro, 20A 125V, 2- Pole 3-Wire Grounding, 5-20R, Red
Features
- Tamper-resistant shutter complies with national electrical code requirements
- Triple wipe contacts
- High impact resistant decorator face
- Steel mounting strap
- Tamper Resistant, USA Product
Specifications
Specifications
- Country of Origin
- Mexico
- Dimensions
- 3.28 in x 1.57 in x 1.15 in
- Horsepower - Maximum
- 1
- Length
- 3.28 in
- Standards - RoHS Compliance Status
- CM
- Application
- Hubbell-Pro Heavy Duty Hospital Grade
- Dielectric Strength
- Withstands 2,000V minimum
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Special Features
- Tamper Resistant, USA Product
- Type
- Duplex Receptacle
- Wattage
- 2500 W
- Voltage Rating Description
- 125 V
- Width
- 1.57 in
- General Literature Asset 2 Display Text
- Hubbell-Pro Hospital Grade Receptacles
- Connectivity
- Back and Side Wired Screw Terminals
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Class Code
- A04
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 2182REDTR
- Material - Mounting Hardware
- Screw Mounting
- Material
- Nylon
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.250 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 24.350 lb.
- Pallet Height
- 38.800 in
- Pallet Weight
- 876.600 lb.
Current / Amperage Rating20 A
Height1.15 in
Industry Standard(s)Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Maximum continuous 75°C, minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Amperage Rating20 A
ColorRed
NEMA Rating5-20R
Number of Wires3-Wire
Size3.28 in x 1.57 in x 1.15 in
StandardCertified to CSA, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
Voltage Rating125 VAC
Wire Size#12 AWG to #10 AWG
Weight0.2 lb.
General Literature Asset 1 Display TextDuct Products Guide
General Literature Asset 3 Display TextHeavy Duty Tamper-Resistant Receptacles
Nema Rating5-20R
Number Of Wires3-Wire
StyleStyle Line decorator
Description - InvoiceHUBBELL-PRO HG DECO 20A/125V TR RED
Harmonization Code8536698000
MSDS FlagNo
Sub Class CodeA04A040
Current Rating20 A
SeriesHubbell-Pro
BOX SIZE3.700x9.900x4.700 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack00783585542027
Case - Total Units100 EA
Pallet - GTIN - Package70783585542026
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Contact Manufacturer
