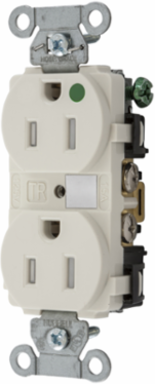

Hubbell Wiring Device-Kellems 8200LATRA Hospital Grade Duplex Receptacle, 15A 125V, 3-Wire, Light Almond
Hubbell Wiring Device-Kellems 8200LATRA Hospital Grade Duplex Receptacle, 15A 125V, 3-Wire, Light Almond
- MPN: 8200LATRA
- UPC: 783585542164
- PPN: HBL-8200LATRA
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$32.32/ EA
Description
Straight Blade Devices, Tamper Resistant Duplex Receptacle, Hospital Grade, Hubbell-Pro, 2-Pole 3- WireGrounding, 15A 125V, 5-15R, Light Almond
Features
- Tamper-resistant shutter complies with national electrical code requirements
- Triple wipe contacts
- High impact resistant face with circuit I.D. marking area
- Steel mounting strap
Specifications
Dimensions
- Dimensions
- 3.28 in x 1.57 in x 1.15 in
- Length
- 3.28 in
- Width
- 1.57 in
Height1.15 in
Weight0.2 lb
Certifications and Compliance
- Nema Rating
- 5-15R
Conductor Related
- Number Of Wires
- 3-Wire
Wire Size#14 AWG to #10 AWG
General
- Application
- Hubbell-Pro Heavy Duty Hospital Grade
- Horsepower - Maximum
- 0.5
- Material
- Nylon
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Style
- Smooth Face
- UPC
- 783585542164
ColorLight Almond
Item TypeTraditional Duplex
Material - Mounting HardwareScrew Mounting
OEM Brand NameHubbell Wiring Device-Kellems
SeriesHubbell-Pro
TypeReceptacle
Electrical Ratings
- Amperage Rating
- 15 A
- Current / Amperage Rating
- 15 A
- Dielectric Strength
- Withstands 2,000V minimum
- Voltage Rating
- 125 VAC
- Wattage
- 1875 W
ConnectivityBack and Side Wired
Current Rating15 A
PhaseSingle Phase
Voltage Rating Description125 V
Logistics
- Carton Quantity
- 10 EA
Downloads
