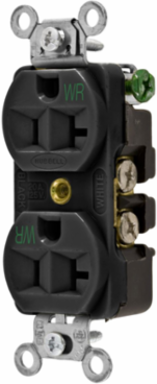

Hubbell Wiring Device-Kellems 5362BKWR Weather Resistant Duplex Receptacle, 20A 125V, 2-Pole 3-Wire
Hubbell Wiring Device-Kellems 5362BKWR Weather Resistant Duplex Receptacle, 20A 125V, 2-Pole 3-Wire
- MPN: 5362BKWR
- UPC: 783585358680
- PPN: HBL-5362BKWR
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$18.06/ EA
Description
Straight Blade Devices, Weather Resistant Receptacles, Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Black
Features
- Weather-resistance complies with national electrical code requirements
- Finder Groove Face
- Triple wipe contacts
- Compact design
- Self Grounding
Specifications
Specifications
- Country of Origin
- US
- Dimensions
- 3.28 in x 1.41 in x 1.09 in
- Height
- 1.09 in
- Industry Standard(s)
- UL File No. E2186, Certified to CSA 22.2, No. 42 File 285, Fed. Spec. W-C-596, NEMA® WD-6 Compliant
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V-2;Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
- Application
- Hubbell-Pro Extra Heavy Duty
- Dielectric Strength
- Withstands 2,000V minimum
- Mounting
- Screw Mount
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Special Features
- Self Grounding
- Temperature Rating
- Maximum continuous 75°C; minimum -40°C (w/o impact)
- Voltage Rating
- 125 V
- Wire Size
- #12 AWG to #10 AWG
- Weight
- 0.2 lb.
- Connectivity
- Back and Side Wired
- Mounting Type
- Screw Mount
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Class Code
- A04
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A04A022
- Current Rating
- 20 A
- Series
- Hubbell-PRO
- BOX SIZE
- 2.200x7.600x4.100 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585358680
- Case - Total Units
- 100 EA
- Each - Pack Description
- Each
Current / Amperage Rating20 A
Each - Width1.900 in
Horsepower - Maximum1
Length3.28 in
Amperage Rating20 A
ColorBlack
Environmental ConditionsWeather Resistant
NEMA Rating5-20R
Number of Wires3-Wire
Size3.28 in x 1.41 in x 1.09 in
StandardUL File No. E2186, Certified to CSA 22.2, No. 42 File 285, Fed. Spec. W-C-596, NEMA® WD-6 Compliant
TypeWeather Resistant Duplex
Wattage1875 W
Voltage Rating Description125 V
Width1.41 in
Display SizeStandard Sized Product
Nema Rating5-20R
Number Of Wires3-Wire
StyleFinder Groove Face
Description - InvoicePRO WR RECPT, DUP, 20A 125V, BK
Harmonization Code8536698000
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
MaterialThermoplastic/Composite
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight20.000 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- No
Downloads
