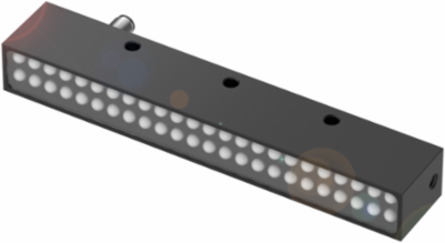

Balluff BAE LX-VS-LW100-S26 Strip lights - BAE00NW
Balluff BAE LX-VS-LW100-S26 Strip lights - BAE00NW
- MPN: BAE LX-VS-LW100-S26
- PPN: BAL-BAE00NW
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$997.93/ EA
Description
Strip lights - BAE00NW
Specifications
Specifications
- Country of Origin
- Germany
- Version
- Strip light
- Rated operating voltage Ue DC
- 24 V
- Operating mode
- Normal (continuous operation); Boost (continuous operation with cooling)
- Material
- Aluminum anodized, black; Glass
- Light type
- LED White light
- Color temperature
- 5600 K
- Ambient temperature
- -10...55 °C
- IP rating per IEC 60529
- IP54
ConnectionConnector, M5x0.5-Male, 4-pin, 0.3 m
Dimension13 x 18 x 100 mm
Current draw max.125 mA, 250 mA (Boost mode)
Digital inputsTrigger
Illumination area95 x 10 mm
Illuminence (0.1 m)2800 Lux; 6200 Lux (Boost mode)
Beam angle80 ° x 35 °
Approval/ConformityCE; UKCA; WEEE
