LED Strip Light 13 x 18 x 200 mm, 24 V, IP54, 7150 Lux
Balluff

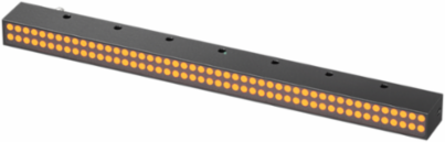

Balluff BAE LX-VS-LR200-S26 LED Strip Light 13 x 18 x 200 mm, 24 V, IP54, 7150 Lux

  • MPN: BAE LX-VS-LR200-S26
  • PPN: BAL-BAE00NY

CAD

$1193.66

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Illuminate your workspace with the Balluff LED Strip Light, a robust lighting solution designed for both efficiency and durability. Measuring 13 x 18 x 200 mm, this strip light operates at a rated voltage of 24 V and boasts an impressive illuminance of 7150 Lux, which can be boosted to 15100 Lux for enhanced visibility. With an IP54 rating, it is well-suited for environments where dust and moisture may be present, ensuring reliable performance even in challenging conditions. Constructed from anodized aluminum and glass, this LED light not only provides a powerful red light at a wavelength of 617 nm but also features a wide beam angle of 115° x 35°, making it ideal for illuminating specific areas effectively. The strip light is equipped with a 4-pin connector for easy installation and can operate continuously or in boost mode with cooling, catering to various operational needs. With its combination of high-quality materials and thoughtful design, this lighting solution is perfect for enhancing visibility in industrial settings.

Documentation & Downloads

Specifications

Additional

Voltage
24 V
Current Draw Max.
290 mA; 710 mA (Boost mode)
Dimensions
13 x 18 x 200 mm
Connection
M5x0.5-Male, 4-pin, 0.3 m
Light Type
LED Red light
IP Rating
IP54
Approval/Conformity
CE; UKCA; WEEE
Digital Inputs
Trigger
Version
Strip light
Illuminance7150 Lux; 15100 Lux (Boost mode)
Beam Angle115 0b0 x 35 0b0
Illumination Area195 x 10 mm
MaterialAluminum anodized, black; Glass
Wavelength617 nm
Ambient Temperature-10 to 55 b0C
Operating ModeNormal (continuous operation); Boost (continuous operation with cooling)
Country of OriginGermany
