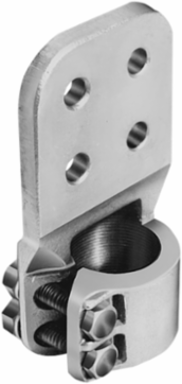

Burndy FD69D8 Stud Connector, 1450 AMP, 2-1/2 Inch x 4 Inch, 4 Holes, DURIUMTM Silicon Bronze
- MPN: FD69D8
- UPC: 781810003657
- PPN: BUR-29693J
CAD
$1222.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Stud connector, 4 Holes, 1450 AMP Nominal, 2 1/2"-12 Stud, 9/16"pad holes, 8.03"length, 4"width, Stud to Flat Bar
Documentation & Downloads
Specifications

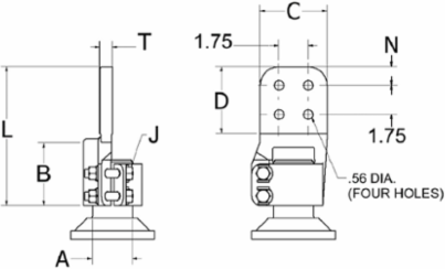

Dimensions
- Dimension - B Length fraction
- 2-1/2 in
- Dimension - Bolt Size fraction
- 1/2
- Dimension - F Width Center to Center inch
- 1.75 in
- Dimension - Length Overall inch
- 8.03 in
- Dimension - Pad Width inch
- 4.00 in
- Dimension - Pin Diameter inch
- 2.500 in
- Dimension - Threads per inch
- 12
Dimension - B Length inch2.50 in
Dimension - D inch4.00 in
Dimension - L Length Overall mm204 mm
Dimension - N inch1.12 in
Dimension - Pin Diameter fraction2-1/2 in
Dimension - Thread Size1/2-12
Certifications and Compliance
- Certification - CSA Approved
- No
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- EX
Certification - ETLNo
Certification - cULusNo
UL ListedNo
Conductor Related
- Conductor - Connection Combination
- Stud to Pad
General
- Application
- Substation
- Item Type
- 4D
- Material - Hardware
- DURIUM™ Silicon Bronze
- Physical Attribute - Pad Configuration
- 4x4 - 4 holes
- Plated
- N
- Type
- Studs
- UPC 12 Digit
- 7818100036577
Connector TypeStud Connector
MaterialCopper Alloy
Physical Attribute - Number of Holes4
Physical Attribute - Pad OrientationIn-line
Plating TypeUnplated
UPC781810003657
Electrical Ratings
- Amperage Rating
- 1450 A
Rating - KVA230 kV
