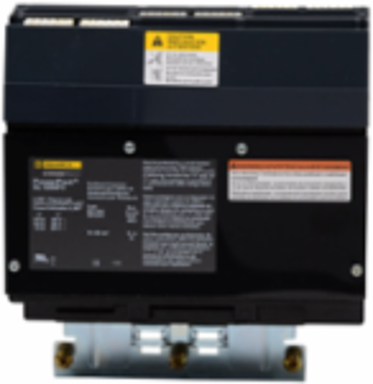

Square D SL1200P5 I-Line Subfeed Lug Kit 1200A AWG 3/0 to 500 kcmil
- MPN: SL1200P5
- UPC: 785901905738
- PPN: SCH-SL1200P5
CAD
$2115.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PowerPacT M, P, and R-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. This is a connection accessory for I-Line panelboards. They have plug on jaw construction and plug on to the I-Line bus stack as branch circuit breakers. Lugs on these devices accommodate the same size wire as the equivalent ampere rated circuit breaker. The lug kit is 3 pole and rated for 1200A. The lugs accept 3/0 AWG to 500 kcmil and accept 4 conductors per lug. This lug kit complies with UL standards.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Complementary Attributes
- Line Rated Current
- 1200-1200 A
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Traceability
- No
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Energy Efficiency Optimized
- False
- Product Or Component Type
- sub-feed lug
- Returnability
- Yes
- Certificate Agency
- UL Listed
- Package Weight(Lbs)
- 6.078 kg
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Local Publishable Date2025-11-13
Stocking FlagN
ServiceabilityNo
Field Service DivisionPPIBS
Weee Product Category4
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Full Compliance StatusCompliant
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Awg Gauge3/0 AWG...500 kcmil
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductI-Line
Sustainable PackagingNo
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536904000
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Take BackNo
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
General Attributes
- Product Or Component Type
- sub-feed lug
Range Of ProductI-Line
