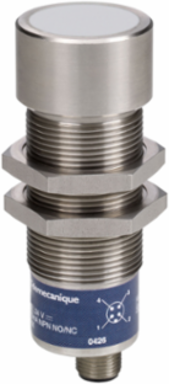

Telemecanique Sensors SM952A126000S Hyde Park, Ultrasonic sensor, dual level, dual setpoint, 30 mm barrel, 12 24 V DC
- MPN: SM952A126000S
- PPN: TES-SM952A126000S
- UNSPSC: 39122230
CAD
$1168.53
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Hyde Park, Ultrasonic sensor, dual level, dual setpoint, 30 mm barrel, 12 24 V DC
Documentation & Downloads
Specifications
Key Specifications
- Iso Thread
- M30 x 1.5
- Series Name
- Superprox 900
- Discrete Output Function
- 1 NO
- Range Of Product
- Hyde Park
- Product Specific Application
- dual-level - setpoint
- Electrical Connection
- male connector M12 4 pins
- Enclosure Material
- stainless steel 303
- Material
- stainless steel
- [Us] Rated Supply Voltage
- 12...24 V DC overload and short-circuit protection
Type Of Sensing Windowadjustable
Discrete Output TypePNP
Type Of Output Signaldiscrete
Supply Voltage Limits10-28 V DC
Sensor Typeultrasonic sensor
Sensor Designcylindrical M30
Front Materialsilicone rubber
Device Short NameSM952
Wiring Technique4-wire
Complementary
- Repeat Accuracy
- 0.87 %
- Height
- 30 mm
- Maximum Switching Current
- 100 mA reverse polarity protection
- Width
- 34.7 mm
- [Sn] Nominal Sensing Distance
- 1-1 m
- [Sd] Sensing Range
- 0.0508-1 m
- Net Weight
- 0.9 kg
- Maximum Differential Travel
- 2.5 mm
Beam Angle10 °
Minimum Size Of Detected Objectcylinder diameter 1.6 mm - up to 305 mm sensing distance
Transmission Frequency200 kHz
Depth30 mm
Blind Zone51-51 mm
Length96 mm
Current Consumption100 mA
Environment
- Product Certifications
- UL
- Resistance To Electromagnetic Fields
- 10 V/m level 3 IEC 61000-4-3
- Relative Humidity
- 100-100 % without condensation
- Vibration Resistance
- +/-1 mm 10-55 Hz)IEC 60068-2-6
- Marking
- CE
- Ip Degree Of Protection
- IP67
Ambient Air Temperature For Operation0-50 °C
Ambient Air Temperature For Storage-20-80 °C
Nema Degree Of ProtectionNEMA 4X indoor use only)
Shock Resistance30 gn in all 3 axes 11 ms IEC 60068-2-27
Resistance To Fast Transients1 kV level 3 IEC 61000-4-4
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Eu Rohs Directive
- Not applicable, out of EU RoHS legal scope
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach RegulationReference contains Substances of Very High Concern above the threshold
