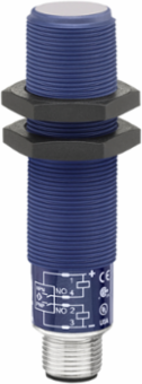

Telemecanique Sensors SM656A79601 Hyde Park, Ultrasonic sensor, analog, voltage (V), 18 mm barrel, 15 24 V DC
- MPN: SM656A79601
- PPN: TES-SM656A79601
CAD
$952.33
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Hyde Park, Ultrasonic sensor, analog, voltage (V), 18 mm barrel, 15 24 V DC
Documentation & Downloads
Specifications
Key Specifications
- Iso Thread
- M18 x 1
- Series Name
- Superprox 600
- Range Of Product
- Hyde Park
- Product Specific Application
- analog output
- Electrical Connection
- male connector M12 4 pins
- Enclosure Material
- ULTEM
- Material
- plastic
- Analogue Output Range
- 0...10 V direct
- Wiring Technique
- 4-wire
Type Of Sensing Windowfixed
Type Of Output Signalanalog
Supply Voltage Limits13-28 V DC
Sensor Typeultrasonic sensor
Sensor Designcylindrical M18
Front Materialsilicone rubber
Device Short NameSM656
[Us] Rated Supply Voltage15...24 V DC overload and short-circuit protection
Complementary
- Beam Angle
- 10 °
- Minimum Size Of Detected Object
- cylinder diameter 1.59 mm - up to 63.5 mm sensing distance
- Transmission Frequency
- 500 kHz
- Depth
- 18 mm
- Blind Zone
- 19-19 mm
- Length
- 73.91 mm
- Current Consumption
- 50 mA
Height18 mm
Maximum Switching Current100 mA reverse polarity protection
Width18 mm
[Sn] Nominal Sensing Distance177.8-177.8 mm
[Sd] Sensing Range25.8-177.8 mm
Net Weight0.033 kg
Environment
- Product Certifications
- UL
- Resistance To Electromagnetic Fields
- 10 V/m level 3 IEC 61000-4-3
- Relative Humidity
- 100-100 % without condensation
- Vibration Resistance
- +/-1 mm 10-55 Hz)IEC 60068-2-6
- Marking
- CE
- Ip Degree Of Protection
- IP67
Ambient Air Temperature For Operation0-60 °C
Ambient Air Temperature For Storage-40-100 °C
Nema Degree Of ProtectionNEMA 4X indoor use only)
Shock Resistance30 gn in all 3 axes 11 ms IEC 60068-2-27
Resistance To Fast Transients1 kV level 3 IEC 61000-4-4
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Circularity Profile
- ENVEOLI111225EN
- Mercury Free
- Yes
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Environmental DisclosureENVPEP111234EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
