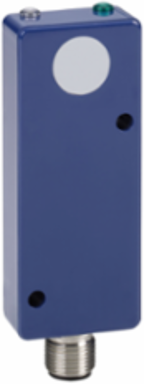

Telemecanique Sensors SM656AB0006AAFP Ultrasonic proximity sensor SM, subcompact flat profile, output analog voltage, 15-24 V DC, Superprox, Cylinder diameter 1.59 mm - up to 76.2 mm sensing distance

  • MPN: SM656AB0006AAFP
  • PPN: TES-SM656AB0006AAFP

CAD

$1030.07

/ EA

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Ultrasonic proximity sensor SM, subcompact flat profile, output analog voltage, 15-24 V DC, Superprox, Cylinder diameter 1.59 mm - up to 76.2 mm sensing distance

Documentation & Downloads

Specifications

Key Specifications

Indivisible sale quantity1
Commercial statusCommercialised

Complementary

Minimum size of detected objectCylinder diameter 1.59 mm - up to 76.2 mm sensing distance
Current consumption<= 50 mA

Main

Range of productHyde Park
Series nameSuperprox 600
MaterialPlastic
Type of sensing windowFixed
Rated supply voltage (Us)15...24 V DC with overload and short-circuit protection
Product specific applicationAnalog output
Front materialSilicone rubber
Sensor typeUltrasonic sensor
Sensor designFlat form subcompact
Type of output signalAnalog
Wiring technique4-wire
Electrical connectionMale connector M12 4 pins
Enclosure materialULTEM

Environment

IP degree of protectionIP67
Product certificationsUL
Vibration resistance+/-1 mm conforming to IEC 60068-2-6 (f = 10-55 Hz)
MarkingCE
NEMA degree of protectionNEMA 4X (indoor use only)
Shock resistance30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27
Ultrasonic proximity sensor SM, subcompact flat profile, output analog voltage, 15-24 V DC, Superprox, Cylinder diameter 1.59 mm - up to 76.2 mm sensing distance
CAD$1030.07/EA
