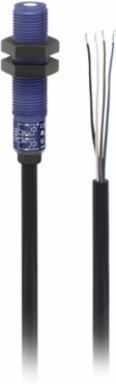

Telemecanique Sensors SC300A400 Hyde Park, Ultrasonic sensor, discrete, 12 mm barrel, 12 24 V DC
- MPN: SC300A400
- PPN: TES-SC300A400
- UNSPSC: 39122230
CAD
$340.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Hyde Park, Ultrasonic sensor, discrete, 12 mm barrel, 12 24 V DC
Documentation & Downloads
Specifications
Key Specifications
- Iso Thread
- M12 x 1
- Series Name
- Superprox +
- Range Of Product
- Hyde Park
- Product Specific Application
- discrete proximity
- Electrical Connection
- cable, 3 m
- Enclosure Material
- ULTEM
- Material
- plastic
- [Us] Rated Supply Voltage
- 12...24 V DC overload and short-circuit protection
Type Of Sensing Windowconfigurable
Type Of Output Signaldiscrete
Supply Voltage Limits10-28 V DC
Sensor Typeultrasonic sensor
Sensor Designcylindrical M12
Front Materialglass epoxy
Device Short NameSC300
Wiring Technique4-wire
Complementary
- Repeat Accuracy
- 0.7 %
- Height
- 12 mm
- Maximum Switching Current
- 100 mA reverse polarity protection
- Width
- 12 mm
- [Sn] Nominal Sensing Distance
- 101.6-101.6 mm
- Length
- 53.08 mm
- Current Consumption
- 25 mA
Beam Angle8 °
Minimum Size Of Detected Objectcylinder diameter 2.5 mm - up to 1 mm sensing distance
Transmission Frequency500 kHz
Depth12 mm
Blind Zone6.4-6.4 mm
Net Weight0.011 kg
Maximum Differential Travel0.7 mm
Environment
- Product Certifications
- UL
- Resistance To Electromagnetic Fields
- 10 V/m level 3 IEC 61000-4-3
- Relative Humidity
- 100-100 % without condensation
- Vibration Resistance
- +/-1 mm 10-55 Hz)IEC 60068-2-6
- Marking
- CE
- Ip Degree Of Protection
- IP67
Ambient Air Temperature For Operation-30-70 °C
Ambient Air Temperature For Storage-40-100 °C
Nema Degree Of ProtectionNEMA 4X indoor use only)
Shock Resistance30 gn in all 3 axes 11 ms IEC 60068-2-27
Resistance To Fast Transients1 kV level 3 IEC 61000-4-4
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Eu Rohs Directive
- Not applicable, out of EU RoHS legal scope
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach RegulationReference contains Substances of Very High Concern above the threshold
