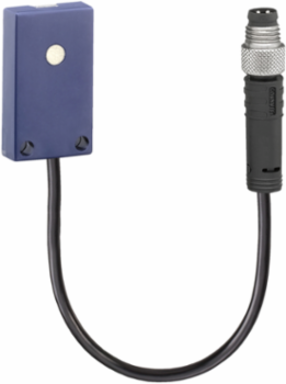

Telemecanique Sensors SM330A20400FP Ultrasonic proximity sensor SM, miniature flat profile, output discrete, 12-24 V DC, wiring technique 3-wire
- MPN: SM330A20400FP
- PPN: TES-SM330A20400FP
CAD
$446.68
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Ultrasonic proximity sensor SM, miniature flat profile, output discrete, 12-24 V DC, wiring technique 3-wire
Documentation & Downloads
Specifications
Key Specifications
| Indivisible sale quantity | 1 |
|---|
| Commercial status | Commercialised |
|---|
Complementary
| Minimum size of detected object | Cylinder diameter 2.5 mm - up to 1 mm sensing distance |
|---|
| Current consumption | 25 mA |
|---|
Environment
| IP degree of protection | IP67 |
|---|---|
| Product certifications | UL |
| Vibration resistance | +/-1 mm conforming to IEC 60068-2-6 (f = 10-55 Hz) |
| Marking | CE |
|---|---|
| NEMA degree of protection | NEMA 4X (indoor use only) |
| Shock resistance | 30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27 |
Main
| Range of product | Hyde Park |
|---|---|
| Series name | Superprox 300 |
| Material | Plastic |
| Type of sensing window | Fixed |
| Wiring technique | 3-wire |
| Discrete output type | PNP |
| Product specific application | Discrete proximity |
| Front material | Glass epoxy |
| Sensor type | Ultrasonic sensor |
|---|---|
| Sensor design | Flat form miniature |
| Type of output signal | Discrete |
| Discrete output function | 1 NO |
| Rated supply voltage (Us) | 12...24 V DC with overload and short-circuit protection |
| Electrical connection | Remote male connector M8 3 pins, 152 mm cable length |
| Enclosure material | ULTEM |
