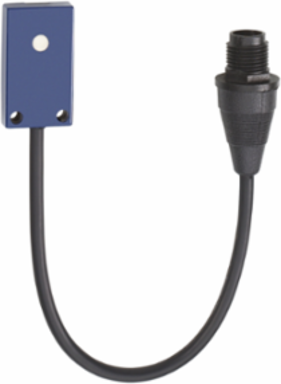

Telemecanique Sensors SM380A21600FP Hyde Park, Ultrasonic sensor, discrete, miniature flat profile, 12 24 V DC
- MPN: SM380A21600FP
- PPN: TES-SM380A21600FP
- UNSPSC: 39122230
CAD
$323.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Hyde Park, Ultrasonic sensor, discrete, miniature flat profile, 12 24 V DC
Documentation & Downloads
Specifications
Key Specifications
- Type Of Sensing Window
- fixed
- Discrete Output Type
- PNP/NPN
- Type Of Output Signal
- discrete
- Supply Voltage Limits
- 10-28 V DC
- Sensor Type
- ultrasonic sensor
- Sensor Design
- flat form miniature
- Front Material
- glass epoxy
- Device Short Name
- SM380
- Wiring Technique
- 4-wire
Series NameSuperprox 300
Discrete Output Function1 NO
Range Of ProductHyde Park
Product Specific Applicationdiscrete proximity
Electrical Connectionremote male connector M12 4 pins, 152 mm
Enclosure MaterialULTEM
Materialplastic
[Us] Rated Supply Voltage12...24 V DC overload and short-circuit protection
Complementary
- Repeat Accuracy
- 0.7 %
- Height
- 7.62 mm
- Maximum Switching Current
- 100 mA reverse polarity protection
- Width
- 19.05 mm
- [Sn] Nominal Sensing Distance
- 50.8-50.8 mm
- [Sd] Sensing Range
- 25.4-50.8 mm
- Net Weight
- 0.04 kg
- Maximum Differential Travel
- 0.7 mm
Beam Angle8 °
Minimum Size Of Detected Objectcylinder diameter 2.5 mm - up to 1 mm sensing distance
Transmission Frequency500 kHz
Depth7.62 mm
Blind Zone6.4-6.4 mm
Length33.02 mm
Current Consumption25 mA
Environment
- Product Certifications
- UL
- Resistance To Electromagnetic Fields
- 10 V/m level 3 IEC 61000-4-3
- Relative Humidity
- 100-100 % without condensation
- Vibration Resistance
- +/-1 mm 10-55 Hz)IEC 60068-2-6
- Marking
- CE
- Ip Degree Of Protection
- IP67
Ambient Air Temperature For Operation-30-70 °C
Ambient Air Temperature For Storage-40-100 °C
Nema Degree Of ProtectionNEMA 4X indoor use only)
Shock Resistance30 gn in all 3 axes 11 ms IEC 60068-2-27
Resistance To Fast Transients1 kV level 3 IEC 61000-4-4
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Circularity Profile
- ENVEOLI111225EN
- Mercury Free
- Yes
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Environmental DisclosureENVPEP111234EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
