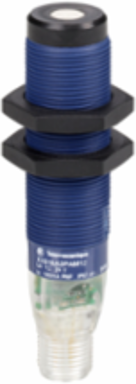

Telemecanique Sensors VM18PNOQ Hyde Park, ultrasonic sensor cylindrical M18, Sn508mm, NO, 12...24 VDC, M12
Telemecanique Sensors VM18PNOQ Hyde Park, ultrasonic sensor cylindrical M18, Sn508mm, NO, 12...24 VDC, M12
- MPN: VM18PNOQ
- UPC: 785901691723
- PPN: TES-VM18PNOQ
- UNSPSC: 39122230
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$207.27/ EA
Description
This product is part of the Hyde Park Ultrasonic Sensors range, an offer of ultrasonic sensors. This ultrasonic sensor is a self-contained, pulse-echo, proximity sensing device that both transmits and receives sonic energy. It offers PNP sourcing discrete output signal and normally opened output. This 18mm barrel sensor transmits and receives energy of 50.8mm (2inch) to 508mm (20inch) maximum sensing range. Operating on 15V to 24V DC and employing the latest piezoelectric and microprocessor technology. Supports 4-wire wiring technique and furnished with 4-pin M12 male connector for electrical connection. It is a cylindrical M18 threaded designed sensor with adjustable sensing window. The blue enclosure is made of PBT with glass epoxy front part. It is available in size of 77.62mm (L) x 18mm (W) x 18mm (D) and weighs 0.033kg. The ultrasonic sensor is suitable for packaging, automotive, paper industry, machine tool, assembly, water treatment, food and beverage processing etc. It is an IP67 and NEMA 4X rated product. This product is certified by CE and UL. Detection of any material, irrespective of colour, light ambiance at the same distance, without adjustment or correction factor. This is the next generation of compact ultrasonic analogue sensor that outperforms many other sensor types in all types of applications.
Specifications
Environment
- Product Certifications
- UL
- Resistance To Electromagnetic Fields
- 10 V/m level 3 IEC 61000-4-3
- Vibration Resistance
- +/-1 mm 10-55 Hz)IEC 60068-2-6
- Marking
- CE
- Ambient Air Temperature For Storage
- -40-85 °C
- Nema Degree Of Protection
- NEMA 4X indoor use only)
Ambient Air Temperature For Operation-30-70 °C
StandardsEN 60947
Shock Resistance30 gn in all 3 axes 11 ms IEC 60068-2-27
Ip Degree Of ProtectionIP67
Relative Humidity100-100 % without condensation
Resistance To Fast Transients1 kV level 3 IEC 61000-4-4
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111234EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI111225EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Repeat Accuracy
- 1.27 %
- Minimum Size Of Detected Object
- cylinder diameter 2.5 mm - up to 200 mm sensing distance
- Status Led
- output not active 1 LED green)
- [Sa] Assured Operating Distance
- 50.8-508 mm remote teach push-button
- [Sd] Sensing Range
- 50.8-508 mm
- Net Weight
- 0.033 kg
- Beam Angle
- 5 °
- Width
- 18 mm
- [Sn] Nominal Sensing Distance
- 508-508 mm
Height18 mm
Maximum Switching Current100 mA reverse polarity protection
Transmission Frequency300 kHz
Blind Zone0-51 mm
Length77.62 mm
Current Consumption40 mA
Resistance To Electrostatic Discharge8 kV level 4 IEC 61000-4-2
Depth18 mm
Specifications
- Iso Thread
- M18 x 1
- Discrete Output Type
- PNP
- Type Of Output Signal
- discrete
- Material
- plastic
- Series Name
- Virtu VM18
- Sensor Type
- ultrasonic sensor
- Sensor Design
- cylindrical M18
- Front Material
- glass epoxy
- [Us] Rated Supply Voltage
- 12...24 V DC overload and short-circuit protection
Type Of Sensing Windowadjustable
Discrete Output Function1 NO
Range Of ProductHyde Park
Wiring Technique4-wire
Supply Voltage Limits10-28 V DC
Electrical Connectionmale connector M12 4 pins
Enclosure MaterialPBT
Device Short NameVM18
