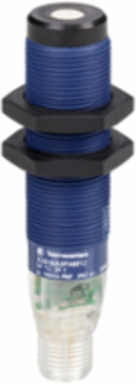

Telemecanique Sensors VM18PTOQ Hyde Park, ultrasonic sensor cylindrical M18, Sn508mm, NO/NC, 12...24 VDC, M12
Telemecanique Sensors VM18PTOQ Hyde Park, ultrasonic sensor cylindrical M18, Sn508mm, NO/NC, 12...24 VDC, M12
- MPN: VM18PTOQ
- UPC: 785901685937
- PPN: TES-VM18PTOQ
- UNSPSC: 39122230
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$212.62/ EA
Description
This product is part of the Hyde Park range, an offer of ultrasonic sensors. This ultrasonic sensor in a cylindrical M18 design and adjustable sensing type window. It supports 508mm nominal sensing distance and 1 NO or NC programmable PNP discrete output. It is an ultrasonic sensor with a rated supply voltage of 12V to 24V DC with overload, short circuit protection and current consumption of 40mA. It is furnished with 4-pin M12 male connector for electrical connection. It is an IP67 and NEMA 4X rated product. The enclosure is made of PBT with glass epoxy front. Its dimensions are 77.62mm (length) x 18mm (width) x 18mm (height). It weighs 0.033kg. It is suitable for packaging, automotive, food and beverage processing applications. This product is certified by CE and UL. The Hyde Park ultrasonic sensors operate in diffuse, reflex and thru beam modes. This range of sensors even includes long distance detection models. Hyde Park ultrasonic sensors perform contactless, reliable and high performance detection regardless of the target's shape, texture, color or transparency.
Specifications
Environment
- Product Certifications
- UL
- Resistance To Electromagnetic Fields
- 10 V/m level 3 IEC 61000-4-3
- Shock Resistance
- 30 gn in all 3 axes 11 ms IEC 60068-2-27
- Ip Degree Of Protection
- IP67
- Relative Humidity
- 100-100 % without condensation
- Resistance To Fast Transients
- 1 kV level 3 IEC 61000-4-4
Ambient Air Temperature For Operation-30-70 °C
Vibration Resistance+/-1 mm 10-55 Hz)IEC 60068-2-6
MarkingCE
Ambient Air Temperature For Storage-40-85 °C
Nema Degree Of ProtectionNEMA 4X indoor use only)
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111234EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI111225EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Repeat Accuracy
- 1.27 %
- Minimum Size Of Detected Object
- cylinder diameter 2.5 mm - up to 200 mm sensing distance
- Transmission Frequency
- 300 kHz
- Blind Zone
- 0-51 mm
- Length
- 77.62 mm
- Current Consumption
- 40 mA
- Resistance To Electrostatic Discharge
- 8 kV level 4 IEC 61000-4-2
- Depth
- 18 mm
Height18 mm
Maximum Switching Current100 mA reverse polarity protection
[Sa] Assured Operating Distance50.8-508 mm remote teach push-button
[Sd] Sensing Range50.8-508 mm
Net Weight0.033 kg
Beam Angle5 °
Width18 mm
[Sn] Nominal Sensing Distance508-508 mm
Specifications
- Iso Thread
- M18 x 1
- Discrete Output Type
- PNP
- Type Of Output Signal
- discrete
- Material
- plastic
- Series Name
- Virtu VM18
- Sensor Type
- ultrasonic sensor
- Sensor Design
- cylindrical M18
- Front Material
- glass epoxy
- [Us] Rated Supply Voltage
- 12...24 V DC overload and short-circuit protection
Type Of Sensing Windowadjustable
Discrete Output Function1 NO or 1 NC programmable
Range Of ProductHyde Park
Wiring Technique4-wire
Supply Voltage Limits10-28 V DC
Electrical Connectionmale connector M12 4 pins
Enclosure MaterialPBT
Device Short NameVM18
