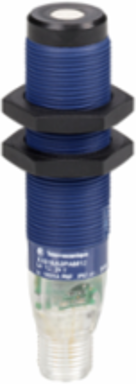

Telemecanique Sensors VM18NNOQ Hyde Park, ultrasonic sensor cylindrical M18, Sn508mm, NO, 12...24 VDC, M12
- MPN: VM18NNOQ
- UPC: 785901532125
- PPN: TES-VM18NNOQ
- UNSPSC: 39122230
CAD
$212.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Hyde Park, ultrasonic sensor cylindrical M18, Sn508mm, NO, 12...24 VDC, M12
Documentation & Downloads
Specifications
Key Specifications
- Iso Thread
- M18 x 1
- Discrete Output Type
- NPN
- Type Of Output Signal
- discrete
- Material
- plastic
- Series Name
- Virtu VM18
- Sensor Type
- ultrasonic sensor
- Sensor Design
- cylindrical M18
- Front Material
- glass epoxy
- [Us] Rated Supply Voltage
- 12...24 V DC overload and short-circuit protection
Type Of Sensing Windowadjustable
Discrete Output Function1 NO
Range Of ProductHyde Park
Wiring Technique4-wire
Supply Voltage Limits10-28 V DC
Electrical Connectionmale connector M12 4 pins
Enclosure MaterialPBT
Device Short NameVM18
Complementary
- Repeat Accuracy
- 1.27 %
- Minimum Size Of Detected Object
- cylinder diameter 2.5 mm - up to 200 mm sensing distance
- Status Led
- output not active 1 LED green)
- [Sa] Assured Operating Distance
- 50.8-508 mm remote teach push-button
- [Sd] Sensing Range
- 50.8-508 mm
- Net Weight
- 0.033 kg
- Beam Angle
- 5 °
- Width
- 18 mm
- [Sn] Nominal Sensing Distance
- 508-508 mm
Height18 mm
Maximum Switching Current100 mA reverse polarity protection
Transmission Frequency300 kHz
Blind Zone0-51 mm
Length77.62 mm
Current Consumption40 mA
Resistance To Electrostatic Discharge8 kV level 4 IEC 61000-4-2
Depth18 mm
Environment
- Product Certifications
- UL
- Resistance To Electromagnetic Fields
- 10 V/m level 3 IEC 61000-4-3
- Vibration Resistance
- +/-1 mm 10-55 Hz)IEC 60068-2-6
- Marking
- CE
- Ambient Air Temperature For Storage
- -40-85 °C
- Nema Degree Of Protection
- NEMA 4X indoor use only)
Ambient Air Temperature For Operation-30-70 °C
StandardsEN 60947
Shock Resistance30 gn in all 3 axes 11 ms IEC 60068-2-27
Ip Degree Of ProtectionIP67
Relative Humidity100-100 % without condensation
Resistance To Fast Transients1 kV level 3 IEC 61000-4-4
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111234EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI111225EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
