Hubbell Wiring Device-Kellems 02406003 Stainless Steel Support Grips, Double Eye, 1.25-1.49 Inch, Closed Mesh
- MPN: 02406003
- UPC: 783585311371
- PPN: HBL-02406003
- UNSPSC: 39121719
CAD
$703.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

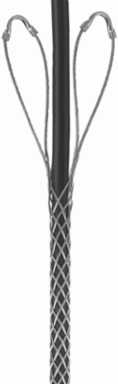

Support Grips, Double Eye, Double Weave, Closed Mesh, Stainless Steel, 1.25-1.49"
Features
- Double eye
- Strand equalizers position wires for equal loading throughout grip length
- Eye assemblies provide eye reinforcement at support hardware
- Closed Mesh
Documentation & Downloads
Specifications
Key Specifications
- General Literature Asset 2 Display Text
- PULP & PAPER SOLUTIONS
- Country of Origin
- United States
- Cable Diameter Range
- 1.25 in-1.49 in
- Industry Standard(s)
- CSA Certified
- Standards - RoHS Compliance Status
- CM
- Cable Size
- 1.25"-1.49" (3.17-3.78)
- Standard
- CSA Certified
- General Literature Asset 1 Display Text
- Wire Management Solutions Brochure
- Class Code
- A52
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A52A480
- Construction
- Woven
- Series
- Heavy Duty
- BOX SIZE
- 4.000x48.000x6.000 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585311371
- Each - Pack Description
- Each
General Literature Asset 3 Display TextFOOD & BEVERAGE SOLUTIONS
Approx Breaking Strength7,300 lb.
Width3.000 in
PerformanceMechanical - Approximate Breaking Strength - 7,300 (32,472);Mechanical - Working Load - 730 (3247.2) Lbs. (N)
ApplicationDouble Eye
Special FeaturesClosed Mesh
TypeDouble Eye
StyleClosed Mesh, Double Weave
Description - InvoiceHD DBL EYE SUP GRIP, 1.2-1.5", SS, CLS
Harmonization Code7326200699
MSDS FlagNo
Material - Mounting HardwareScrew Hook or Beam Clamp
MaterialStainless Steel
Base Unit of MeasureEA
Carton - Gross Weight per Pack4.750 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
