Hubbell Wiring Device-Kellems

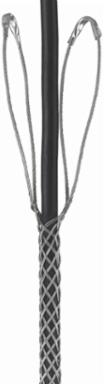

Hubbell Wiring Device-Kellems 02206001 Double Eye Support Grip, 0.75-0.99 Inch, Tin-Coated Bronze, 2,820 lb Breaking Strength

Double Eye Support Grip, 0.75-0.99 Inch, Tin-Coated Bronze, 2,820 lb Breaking Strength
Double Eye Support Grip, 0.75-0.99 Inch, Tin-Coated Bronze, 2,820 lb Breaking Strength
  • MPN: 02206001
  • UPC: 783585304359
  • PPN: HBL-02206001
  • UNSPSC: 39121719

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$315.28/ EA

Description

Support Grips, Double Eye, Double Weave, Closed Mesh, Tin-Coated Bronze, 0.75-0.99"

Features

  • Double eye
  • Strand equalizers position wires for equal loading throughout grip length
  • Eye assemblies provide eye reinforcement at support hardware
  • Closed Mesh

Specifications

Specifications

Country of Origin
Puerto Rico
Cable Diameter Range
0.75 in-0.99 in
Industry Standard(s)
CSA Certified
Application
Double Eye
Special Features
Closed Mesh
Type
Double Eye
General Literature Asset 2 Display Text
PULP & PAPER SOLUTIONS
Style
Closed Mesh, Double Weave
Description - Invoice
HD DBL EYE SUP GRIP, .75-.99"; BRZ, CLS
Harmonization Code
7419805050
MSDS Flag
No
Material - Mounting Hardware
Screw Hook or Beam Clamp
Material
Bronze, Tin Coated
Base Unit of Measure
EA
Carton - Gross Weight per Pack
4.500 lb.
Carton - Pack Description
Carton
Carton - Total Units
5 EA
Each - Pack Description
Each
Approx Breaking Strength2,820 lb.
Width12.000 in
PerformanceMechanical - Approximate Breaking Strength - 2,820 (12,543);Mechanical - Working Load - 282 (1254.3) Lbs. (N)
Cable Size.75"-.99" (1.90-2.51)
StandardCSA Certified
General Literature Asset 1 Display TextPulp & Paper Solutions
General Literature Asset 3 Display TextFOOD & BEVERAGE SOLUTIONS
Class CodeA52
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA52A480
ConstructionWoven
SeriesHeavy Duty
BOX SIZE13.300x24.300x16.900 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack783585304359
Case Weight15.650 lb.
Lowest Level UOMEach

Certifications

EU RoHS Indicator
Yes
