Hubbell Wiring Device-Kellems 02206007 Support Grip, Double Eye, Closed Mesh, 3.00-3.49 Inch, Bronze
- MPN: 02206007
- UPC: 783585304410
- PPN: HBL-02206007
- UNSPSC: 39121719
CAD
$982.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

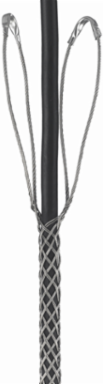

Support Grips, Double Eye, Double Weave, Closed Mesh, Tin-Coated Bronze, 3.00-3.49"
Features
- Double eye
- Strand equalizers position wires for equal loading throughout grip length
- Eye assemblies provide eye reinforcement at support hardware
- Closed Mesh
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Cable Diameter Range
- 3 in-3.49 in
- Industry Standard(s)
- CSA Certified
- Application
- Double Eye
- Special Features
- Closed Mesh
- Type
- Double Eye
- General Literature Asset 2 Display Text
- PULP & PAPER SOLUTIONS
- Style
- Closed Mesh, Double Weave
- Description - Invoice
- HD DBL EYE SUP GRIP, 3.0-3.5"; BRZ, CLS
- Harmonization Code
- 7419805050
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Hook or Beam Clamp
- Material
- Bronze, Tin Coated
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585304410
- Lowest Level UOM
- Each
Approx Breaking Strength10,060 lb.
Width4.500 in
PerformanceMechanical - Approximate Breaking Strength - 10,060 (44,747);Mechanical - Working Load - 1006 (4474.7) Lbs. (N)
Cable Size3.00"-3.49" (7.62-8.86)
StandardCSA Certified
General Literature Asset 1 Display TextPulp & Paper Solutions
General Literature Asset 3 Display TextFOOD & BEVERAGE SOLUTIONS
Class CodeA52
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA52A480
ConstructionWoven
SeriesHeavy Duty Series
BOX SIZE(in)
Each - Pack DescriptionEach
NAICS Code3359323114
Certifications
- EU RoHS Indicator
- Yes
