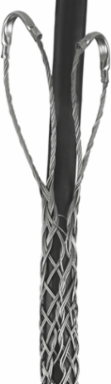

Hubbell Wiring Device-Kellems 02407007 Support Grips Double Eye Stainless Steel 3.00-3.49 Inch Cable
- MPN: 02407007
- UPC: 783585311579
- PPN: HBL-02407007
- UNSPSC: 39121719
CAD
$2015.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Support Grips, Double Eye, Double Weave, Split Mesh, Lace Closing, Stainless Steel, 3.00-3.49"
Features
- Double eye
- Strand equalizers position wires for equal loading throughout grip length
- Eye assemblies provide eye reinforcement at support hardware
- Split Mesh- Lace Closing
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Puerto Rico
- Cable Diameter Range
- 3 in-3.49 in
- Industry Standard(s)
- CSA Certified
- Application
- Double Eye
- Special Features
- Split Mesh- Lace Closing
- Type
- Double Eye
- General Literature Asset 2 Display Text
- PULP & PAPER SOLUTIONS
- Style
- Split Mesh, Lace Closing, Double Weave
- Description - Invoice
- HD DBL EYE SUP GRIP, 3.0-3.49"; SS, LACE
- Harmonization Code
- 7326200090
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Hook or Beam Clamp
- Material
- Stainless Steel
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 26.750 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5 EA
- Each - Pack Description
- Each
Approx Breaking Strength25,200 lb.
Width18.000 in
PerformanceMechanical - Approximate Breaking Strength - 25,200 (112,095);Mechanical - Working Load - 2520 (11209.5) Lbs. (N)
Cable Size3.00"-3.49" (7.62-8.86)
StandardCSA Certified
General Literature Asset 1 Display TextPulp & Paper Solutions
General Literature Asset 3 Display TextFOOD & BEVERAGE SOLUTIONS
Class CodeA52
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA52A480
ConstructionWoven
SeriesHeavy Duty
BOX SIZE7.000x32.000x18.000 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack783585311579
Case Weight34.850 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
