Hubbell Wiring Device-Kellems 02207003 Double Eye Support Grip, 1.25-1.49 Inch, Tin-Coated Bronze, 4,280 lb Break Strength
- MPN: 02207003
- UPC: 783585304502
- PPN: HBL-02207003
- UNSPSC: 39121719
CAD
$401.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

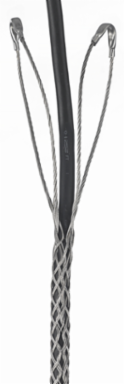

Support Grips, Double Eye, Double Weave, Split Mesh, Lace Closing, Tin-Coated Bronze, 1.25-1.49"
Features
- Double eye
- Strand equalizers position wires for equal loading throughout grip length
- Eye assemblies provide eye reinforcement at support hardware
- Split Mesh- Lace Closing
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Cable Diameter Range
- 1.25 in-1.49 in
- Industry Standard(s)
- CSA Certified
- Application
- Double Eye
- Special Features
- Split Mesh- Lace Closing
- Type
- Double Eye
- General Literature Asset 2 Display Text
- PULP & PAPER SOLUTIONS
- Style
- Split Mesh, Lace Closing
- Description - Invoice
- HD DBL EYE SUP GRIP, 1.2-1.5"; BRZ, LACE
- Harmonization Code
- 7419805050
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Hook or Beam Clamp
- Material
- Bronze, Tin Coated
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 18.250 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585304501
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Approx Breaking Strength4,280 lb.
Width6.750 in
PerformanceMechanical - Approximate Breaking Strength - 4,280 (19,037);Mechanical - Working Load - 428 (1903.7) Lbs. (N)
Cable Size1.25"-1.49" (3.17-3.78)
StandardCSA Certified
General Literature Asset 1 Display TextPulp & Paper Solutions
General Literature Asset 3 Display TextFOOD & BEVERAGE SOLUTIONS
Class CodeA52
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA52A480
ConstructionWoven
SeriesHeavy Duty Series
BOX SIZE0.500x47.500x9.000 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack783585304502
Case Weight30.000 lb.
Lowest Level UOMEach
Pallet Height36.600 in
Pallet Weight277.650 lb.
NAICS Code3359323114
