Hubbell Wiring Device-Kellems

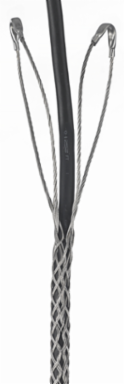

Hubbell Wiring Device-Kellems 02207008 Double Eye Support Grip, 3.50-3.99 Inch Cable, Tin-Coated Bronze

Double Eye Support Grip, 3.50-3.99 Inch Cable, Tin-Coated Bronze
Double Eye Support Grip, 3.50-3.99 Inch Cable, Tin-Coated Bronze
  • MPN: 02207008
  • UPC: 783585304557
  • PPN: HBL-02207008
  • UNSPSC: 39121719

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1184.15/ EA

Description

Support Grips, Double Eye, Double Weave, Split Mesh, Lace Closing, Tin-Coated Bronze, 3.50-3.99"

Features

  • Double eye
  • Strand equalizers position wires for equal loading throughout grip length
  • Eye assemblies provide eye reinforcement at support hardware
  • Split Mesh- Lace Closing

Specifications

Specifications

Country of Origin
United States
Cable Diameter Range
3.5 in-3.99 in
Industry Standard(s)
CSA Certified
Application
Double Eye
Special Features
Split Mesh- Lace Closing
Type
Double Eye
General Literature Asset 2 Display Text
PULP & PAPER SOLUTIONS
Style
Split Mesh, Lace Closing
Description - Invoice
HD DBL EYE SUP GRIP, 3.5-4.0"; BRZ, LACE
Harmonization Code
7419805050
MSDS Flag
No
Material - Mounting Hardware
Screw Hook or Beam Clamp
Material
Bronze, Tin Coated
Base Unit of Measure
EA
Each - Pack Description
Each
Approx Breaking Strength12,070 lb.
Width7.000 in
PerformanceMechanical - Approximate Breaking Strength - 12,070 (53,687);Mechanical - Working Load - 1207 (5368.7) Lbs. (N)
Cable Size3.50"-3.99" (8.89-10.13)
StandardCSA Certified
General Literature Asset 1 Display TextPulp & Paper Solutions
General Literature Asset 3 Display TextFOOD & BEVERAGE SOLUTIONS
Class CodeA52
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA52A480
ConstructionWoven
SeriesHeavy Duty
Carton - SCC-14 Next Lower Level Sub Pack00783585304557
Lowest Level UOMEach

Certifications

EU RoHS Indicator
Yes
