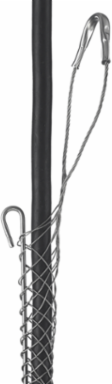

Hubbell Wiring Device-Kellems 02403037 Stainless Steel Support Grips, Offset Eye, 0.50-0.62 Inch, 1,000 lb Breaking Strength
- MPN: 02403037
- UPC: 783585310459
- PPN: HBL-02403037
- UNSPSC: 39121719
CAD
$156.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Support Grips, Offset Eye, Single Weave, Split Mesh, Rod Closing, Stainless Steel, 0.50-0.62"
Features
- Offset eye
- Strand equalizers position wires for equal loading throughout grip length
- Eye assemblies provide eye reinforcement at support hardware
- Split Mesh- Rod Closing
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Cable Diameter Range
- 0.5 in-0.62 in
- Industry Standard(s)
- CSA Certified
- Application
- Offset Eye
- Special Features
- Split Mesh- Rod Closing
- Type
- Offset Eye
- General Literature Asset 2 Display Text
- PULP & PAPER SOLUTIONS
- Style
- Split Mesh, Rod Closing
- Description - Invoice
- OFF EYE, SUP GRIP, .50-.62"; SS, ROD
- Harmonization Code
- 7326200090
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Hook or Beam Clamp
- Material
- Stainless Steel
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 0.500 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Each - Pack Description
- Each
- NAICS Code
- 3359323114
Approx Breaking Strength1,000 lb.
Width5.000 in
PerformanceMechanical - Approximate Breaking Strength - 1,000 (4,448);Mechanical - Working Load - 100 (444.8) Lbs. (N)
Cable Size.50"-.62" (1.27-1.57)
StandardCSA Certified
General Literature Asset 1 Display TextPulp & Paper Solutions
General Literature Asset 3 Display TextFOOD & BEVERAGE SOLUTIONS
Class CodeA52
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA52A480
ConstructionWoven
SeriesStandard Duty Series
BOX SIZE7.000x14.200x11.300 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585310459
Case Weight3.250 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
