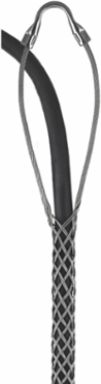

Hubbell Wiring Device-Kellems 02206010 Support Grips Single Eye Closed Mesh, Tin-Coated Bronze, 0.75-0.99 Inch

Support Grips Single Eye Closed Mesh, Tin-Coated Bronze, 0.75-0.99 Inch
Support Grips Single Eye Closed Mesh, Tin-Coated Bronze, 0.75-0.99 Inch
  • MPN: 02206010
  • UPC: 783585304441
  • PPN: HBL-02206010
  • UNSPSC: 39121719

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$298.95/ EA

Description

Support Grips, Single Eye, Double Weave, Closed Mesh, Tin-Coated Bronze, 0.75-0.99"

Features

  • Heavy Duty, Single Eye
  • Strand equalizers position wires for equal loading throughout grip length
  • Eye assemblies provide eye reinforcement at support hardware
  • Closed Mesh

Specifications

Specifications

Approx Breaking Strength
2,820 lb.
Cable Diameter Range
0.75 in-0.99 in
Width
4.030 in
Industry Standard(s)
CSA Certified
Application
Single Eye
Special Features
Closed Mesh
Type
Single Eye
Class Code
A52
Freight Class Code
06168002
Image Actual Or Representative
A
Sub Class Code
A52A480
Construction
Woven
Series
Heavy Duty
BOX SIZE
12.200x32.200x18.300 (in)
Carton - Number of Sub Packs
5
Carton - SCC-14 Next Lower Level Sub Pack
783585304441
Case Weight
49.250 lb.
Lowest Level UOM
Each
Buy American CompliantYes
Country of OriginPR
Each - Width4.030 in
PerformanceMechanical - Approximate Breaking Strength - 2,820 (12,543);Mechanical - Working Load - 282 (1254.3) Lbs. (N)
Cable Size.75"-.99" (1.90-2.51)
StandardCSA Certified
StyleClosed Mesh, Double Weave
Description - InvoiceHD SGL EYE SUP GRIP, .75-.99"; BRZ, CLS
Harmonization Code7419805050
MSDS FlagNo
Material - Mounting HardwareScrew Hook or Beam Clamp
MaterialBronze, Tin Coated
Base Unit of MeasureEA
Carton - Gross Weight per Pack7.500 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Each - Pack DescriptionEach

Certifications

EU RoHS Indicator
Yes

Downloads
