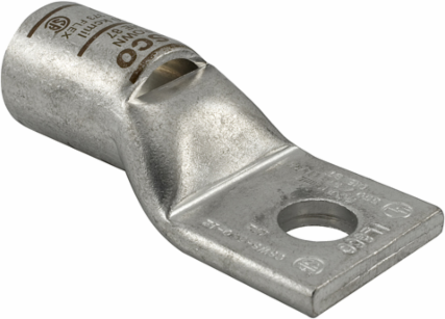

ILSCO CSWS-500-58 Surecrimp Copper Compression Lug, Conductor Size 500, 1 Hole, 5/8in Bolt Size, Standard Barrel, Sight Window, Tin Plated, UL, CSA
- MPN: CSWS-500-58
- UPC: 783669645293
- PPN: ILC-CSWS-500-58
CAD
$50.10
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Surecrimp Copper Compression Lug, Conductor Size 500, 1 Hole, 5/8in Bolt Size, Standard Barrel, Sight Window, Tin Plated, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
| Height | 1.097 in | 27.8638 mm |
|---|---|
| Weight | 0.342285255109279 lbs |
| Length | 3.469 in | 88.1126 mm |
|---|---|
| Width | 1.535 in | 38.989 mm |
Voltage
| Voltage Rating | 35 kV |
|---|
Dimensions
| Barrel Length (IN) | 1.3 |
|---|---|
| Dimension G (IN) | 0.671 |
| Height BX (IN) | 2.25 |
| Inside Diameter (IN) | 0.828 |
| Length (mm) | 88.1126 |
| Mounting Hole Diameter (mm) | 16.6624 |
| Outside Diameter (IN) | 1.052 |
| Strip Length (mm) | 34.5948 |
| Tang Length (mm) | 36.4998 |
| Tang Thickness (mm) | 5.9436 |
| Tang Width (mm) | 38.989 |
| Width BX (IN) | 5 |
| Barrel Length (mm) | 33.02 |
|---|---|
| Dimension G (mm) | 17.0434 |
| Height (mm) | 27.8638 |
| Inside Diameter (mm) | 21.0312 |
| Mounting Hole Diameter (IN) | 0.656 |
| Mounting Hole Spacing (mm) | 0 |
| Outside Diameter (mm) | 26.7208 |
| Tang Length (IN) | 1.437 |
| Tang Thickness (IN) | 0.234 |
| Tang Width (IN) | 1.535 |
| Weight BX (LB) | 3.075 |
| Width (mm) | 38.989 |
Testing Standards
| CSA File Number | LR-29601 |
|---|---|
| NEBS Rating | Level 3 |
| UL Control Number | 453G |
| UL File Number | E6207 |
| CSA Standard | C22.2 No. 65-03 |
|---|---|
| Prop65 Compliance | This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation |
| UL / CULUS Specification | UL 486A/B Listed, UL 467 Listed |
Additional Class Attributes
| Barrel Marking | Ink |
|---|---|
| Connecting Angle | 180° |
| Contains DE-OX® | No |
| ILSCOs Die Catalog Number | ILD-87 |
| Mounting Hole Type | Thru |
| Number of Mounting Holes | 1 |
| Slotted | No |
| Undrilled | No |
| Barrel Type | Standard |
|---|---|
| Connection | Compression |
| Flared End | No |
| ILSCOs Die Index Number | I-87 |
| Narrow Tang | No |
| Sight Window | Yes |
| Tang End Shape | Square |
Material and Finish
| Conductor Material | Copper |
|---|---|
| Material | Copper |
| Connector Finish | Tin |
|---|
Conductor Ranges
| Conductor Range CU Stranded (Primary, run, main, line) | 500 kcmil |
|---|---|
| Flex Conductor Range | 350 G,H,I,K,M 373.7 DLO |
| Expanded Conductor Range | 500 kcmil - 250 kcmil |
|---|
Additional Technical Specifications
| Conductor Type | Flex, Stranded |
|---|
General
| Bag Quantity | 1 |
|---|---|
| Direct Burial | Yes |
| NEMA Code | S-588-3 |
| Carton Quantity Description | STD PACK QTY 6 |
|---|---|
| Dual Rated | No |
| UPC Code | 78366964529 |
Bolt and Screw Sizes
| Mounting Bolt/Stud Size | 5/8 |
|---|
Color
| Color | Silver |
|---|
| Color Code | Brown |
|---|
Environment and Temperature
| Temperature Rating | 90°C |
|---|
