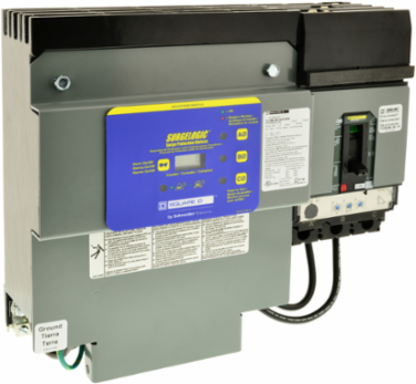

Square D HR9IMA16C1 Surge Protection Device 160kA 600V Delta 3P 3W NEMA 1
- MPN: HR9IMA16C1
- PPN: SCH-HR9IMA16C1
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Surgelogic™ Type IMA systems are internal surgical protection devices with a focus on service entrance and critical branch panel surge suppresion. With a surge current rating of 160,000 Amps and enhanced EMI/RFI filtering, this unit is retrofitted to be installed in a wide variety I-Line Branch units. This product is UL and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Surgelogic
- Product Or Component Type
- surge protection device
Breaking Capacity CodeHR
Device Short NameIMA
Complementary
- Height
- 308.9 mm
- Breaking Capacity
- 100 kA
- Short-Circuit Protection
- 200 kA
- Cable Length
- 483 mm
- [Uc] Maximum Continuous Operating Voltage
- 700 V
- Surge Current
- 160 kA
- Wiring Configuration
- 3-wire
- Network Number Of Phases
- 3 phases
- Number Of Poles
- 3
Local Signallingstatus LED green per phase normal operation || status LED red per phase fault
Connections - TerminalsI-Line line || lugs ground AWG 6 copper 4 N.m || lugs neutral AWG 6 copper 4 N.m
Mounting Supportpanel mounting
Provided Equipmentalarm enable/disable switch || surge counter || circuit-breaker
[In] Rated Current60 A
Width341.9 mm
Depth142.1 mm
Trip Unit Technologyelectronic
[Ue] Rated Operational Voltage600 V delta AC
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Compliant with Exemptions
Rohs Exemption InformationYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Environment
- Nema Degree Of Protection
- NEMA 1
StandardsUL 1449:ed. 3 || CSA C22.2 No 8:1986 || UL 96A:ed. 12 || UL 489:ed. 11 || CSA C22.2 No 5-09
