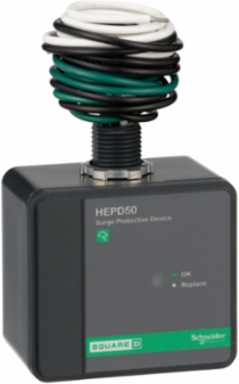

Schneider Electric HEPD50C HEPD Surge Protection Device 120/240 V, 50 kA Surge, NEMA 4X, 3.23 Inch Height

  • MPN: HEPD50C
  • UPC: 785901047834
  • PPN: SCH-HEPD50C
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $199.60

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Available To Ship Immediately:0

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

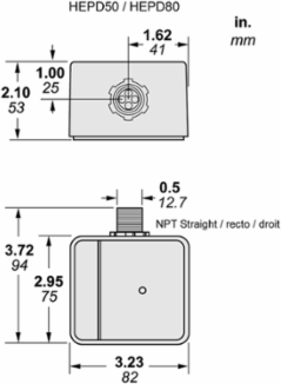

    HEPD whole house devices are designed to deliver AC surge protection for the entire AC power system in a home. HEPDs are compact in size and are designed to protect AC wires in the home from surges that could affect home electronics and appliances not connected to surge strips. For use on 120/240 VAC single phase, 3 wire systems with an isolated ground. This device provides 25 kA of short circuit protection and 50 kA of surge protection per phase. The surge protection device is in a NEMA 4X housing. The surge protection device is 3.23 inches tall, 3.72 inches wide and 2.10 inches deep. The surge protection device is CSA certifed by UL.

    Features

    • Engineered with a robust $50\text{ kA}$ maximum surge current rating per phase, this Whole House Surge Protective Device (SPD) absorbs and dissipates massive voltage spikes before they can reach your appliances. This heavy-duty suppression safeguards high-value investments like smart refrigerators, EV chargers, and home automation systems from the catastrophic damage caused by indirect lightning strikes and utility switching transients.
    • Housed in a rugged, watertight, and UV-resistant NEMA 4X enclosure, this compact unit is fully optimized for both indoor and outdoor installations. It survives extreme weather conditions including driving rain, freezing sleet, and intense summer heat allowing contractors to mount it directly to outdoor combo panels or disconnects without risking environmental failure.
    • Equipped with a high-visibility green LED status lights, this device provides instant visual verification of operational integrity. If a catastrophic surge event occurs and the internal metal oxide varistors (MOVs) sacrifice themselves to protect your home, the lights extinguish immediately, alerting the homeowner or facility technician that the module requires replacement.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginMexico
    Depth2.10 in

    Important Information Attributes

    Certificate AgencyCSA C22.2, cUL, UL 1449:ed. 4: type II
    Local Publishable Date2025-11-13
    Stocking FlagY
    ServiceabilityNo
    Weee ScopeIn
    Scope PerimeterOutside of Europe
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    With Recycled CardboardNo
    Product Contributes To Saved And Avoided EmissionsNo
    Device Short NameHEPD
    Nominal Discharge Current10 kA
    Product AvailabilityNon-Stock - Not normally stocked in distribution facility
    Product Or Component Typesurge protection device
    ReturnabilityYes
    Type Of Packingconsumer packaging
    Height Nominal3.23 in
    [Uc] Maximum Continuous Operating Voltage150 V
    Short-circuit Protection25 kA
    Package Weight(Lbs)394.625 g
    Warranty (In Months)18
    Local Data StatusPublishable
    Return IndicatorY
    Device TypeSurge Protection and Power Conditioning - Surge Protection Devices
    TraceabilityNo
    Weee Product Category5
    Rohs Eur In ScopeYes
    Rohs Eur Conformity Date2207
    China Rohs In ScopeNo
    Without Single Use PlasticNo
    Product Kit IdentifierN
    Local Signalling1 LED green normal operation
    Phase1 phase
    Product Destinationload center
    Range Of ProductSquare D
    Sustainable PackagingNo

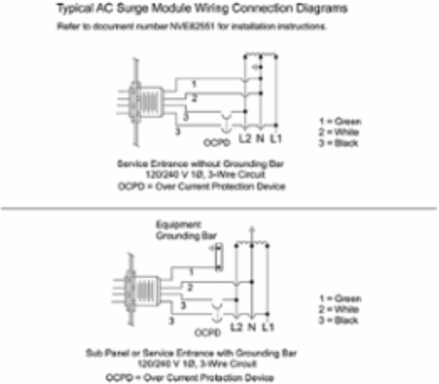

    Wiring Configuration3-wire (isolated ground)
    Width Nominal3.72 in
    [Ue] Rated Operational Voltage120/240 V AC
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8536308000

    Environment Attributes Main

    China Rohs RegulationProduct out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
    Take BackNo
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Made With Recycled CardboardNo
    Ambient Air Temperature For Operation-35-65 °C, -35-65 °C
    Mercury FreeYes
    Nema Degree Of ProtectionNEMA 4X
    Packaging Without Single Use PlasticNo

    General Attributes

    Phase1 phase
    Range Of ProductSquare D
    Product Or Component Typesurge protection device

    Surge Protection And Filtering Attributes

    Surge Current50 kA per phase

    Input Attributes

    Input Voltage600 V L-N, 600 V L - G1000 V L - L900 V N - G
    HEPD Surge Protection Device 120/240 V, 50 kA Surge, NEMA 4X, 3.23 Inch Height
    HEPD Surge Protection Device 120/240 V, 50 kA Surge, NEMA 4X, 3.23 Inch Height
    HEPD Surge Protection Device 120/240 V, 50 kA Surge, NEMA 4X, 3.23 Inch Height
