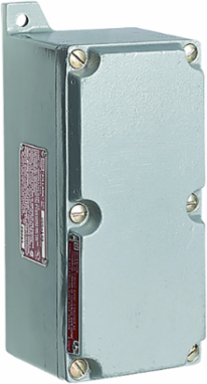

Killark SWBC-83 Aluminum Operator Body Blank Box 18-1/4 Inch x 6-3/4 Inch x 5-3/8 Inch
- MPN: SWBC-83
- UPC: 783936630700
- PPN: HBL-SWBC-83
- UNSPSC: 39122216
CAD
$883.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
SWBC Series - Aluminum Operator Body - Blank Box And Cover Without Operator Holes - Style 6 - SWB-83 Box
Features
- Copper free cast aluminum alloy.
- Ground flange joint between bolted cover and box provide required flame path.
- Accepts both miniature and standard size push buttons.
- Internal ground screw.
- Killark GCS and SWBC SERIES CONTROL STATIONS provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more for use with Killark “GO” Short Style operators when installed in the covers and “GO” Long Style operators when installed in the back wall to allow for thickness of a panel for panel mounting. For use in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use and are Non-Factory Sealed requiring the need for a conduit seal fitting. UL Listed and CSA Certified. The GCS and SWBC can be drilled and tapped to order or in the field by the customer from ½” to 1 1/2” for dead end and feed through entries.
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 18.25 in x 6.75 in x 5.38 in
- Height
- 5.38 in
- Application
- For use with G Series custom control panel operators.
- Mounting
- Wall
- Special Features
- Killark GCS and SWBC SERIES CONTROL STATIONS provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more for use with Killark “GO” Short Style operators when installed in the covers and “GO” Long Style operators when installed in the back wall to allow for thickness of a panel for panel mounting. For use in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use and are Non-Factory Sealed requiring the need for a conduit seal fitting. UL Listed and CSA Certified. The GCS and SWBC can be drilled and tapped to order or in the field by the customer from ½” to 1 1/2” for dead end and feed through entries.
- Weight
- 12.00 lb.
- Mounting Type
- Wall
- Class Code
- D25
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11716
- UL File Number
- E10514
- Series
- SWBC Series
- BOX SIZE
- (in)
- Master Pack Description
- Each
Depth3-1/4 in
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Length18.25 in
ColorGray
Size18.25 in x 6.75 in x 5.38 in
TypeAluminum Operator Body
Width6.75 in
ARRA CompliantContact Manufacturer
Description - InvoiceBLANK BOX AND COVER SWB STYLE3
Harmonization Code7616995190
Lead Time20 wk
Order Multiple1 EA
Sub Class CodeD25D250
Gross Weight with Packaging12
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936630700
NAICS Code3359326103
Certifications
- EU RoHS Indicator
- Contact Manufacturer
