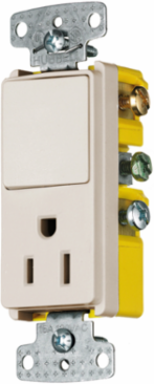

Bryant RCD108LA Residential Grade Light Almond Switch and Receptacle, 15A 120V AC, Single Pole Rocker
Bryant RCD108LA Residential Grade Light Almond Switch and Receptacle, 15A 120V AC, Single Pole Rocker
- MPN: RCD108LA
- UPC: 883778119132
- PPN: HBL-RCD108LA
- UNSPSC: 39122226
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$33.57/ EA
Description
Switches and Lighting Controls, Combination Devices, Residential Grade, Decorator Series, 1) Single Pole Rocker, 1) Single Receptacle, 15A 120V AC, Side Wired, Light Almond
Features
- Smooth, quiet rocker
- Low profile, less than 1 inch deep
- Self-grounding feature is standard
- Standard Product
Specifications
Specifications
- Country of Origin
- China
- Width
- 2.750 in
- Performance
- Electrical - Dielectric voltage - Withstands 1,500V AC minimum for 1 minute;Electrical - Endurance - 30,000 cycles minimum;Electrical - Max. working voltage - 120V;Electrical - Overload - 1.5 times rating;Environmental - Flammability - UL V0;Environmental - Operating temperatures - Maximum continuous 60°C;minimum -20°C (without impact);Mechanical - Terminal accommodation - Back and side wire: #14 AWG min. - #12 AWG max. solid and stranded copper wire only;push wire: #14 AWG solid copper wire only
- Actuator
- Rocker
- Application
- Residential
- Contact Rating
- 15A
- Number of Poles
- 1) Single Pole
- Operating Temperature
- Max Continuous- 60 Degrees C, Minimum- -20 Without Impact
- Standard
- CSA Certified;UL Listed E3896
- Wattage
- 1875
- Connectivity
- Side Wired
- Number Of Poles
- 1) Single Pole
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- RCD108AL
- Current Rating
- 15 A
- BOX SIZE
- 2.500x9.100x4.400 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 883778119132
- Case Weight
- 8.400 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating15 A
Industry Standard(s)CSA Certified;UL Listed E3896
ActionSnap Switch
Amperage Rating15 A
Contact ConfigurationTwo Position
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Operating Cycles30,000 Minimum
Special FeaturesStandard Product
Voltage Rating125 VAC
Voltage Rating Description125 VAC
Display SizeStandard Size
Description - InvoiceSWTCH/RCPT,15A 125V,SP 15A 120/277VAC,LA
Harmonization Code8536698000
MSDS FlagNo
Material - Mounting HardwareMounting Screws
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.6 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Yes
