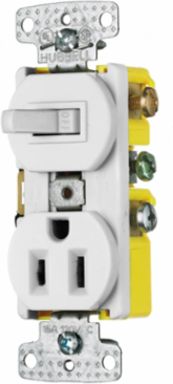

Bryant RC308W 15A 3-Way Toggle Switch with Single Receptacle, 120VAC, Side Wired, UL Listed
- MPN: RC308W
- UPC: 883778109850
- PPN: HBL-RC308W
- UNSPSC: 39122226
CAD
$42.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
One Three Way Toggle One Single Receptacle Combination Device, Residential 15A 120V AC, Self Grounding, Side Wired
Features
- Quiet snap action mechanism
- Self-grounding staple is standard
- Elongated strap with continuous plaster ears
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Width
- 1.750 in
- Performance
- Environmental - Operating temperature - -20°C to 60°C
- Actuator
- Toggle
- Application
- Residential
- Contact Rating
- 15A
- Number of Poles
- 1) Three Way
- Operating Temperature
- Max Continuous- 60 Degrees C, Minimum- -20 Without Impact
- Standard
- UL Listed
- Wattage
- 1800
- Connectivity
- Side Wired
- Number Of Poles
- 1) Three Way
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Material - Mounting Hardware
- Mounting Screws
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 1.5 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10
- Each - Pack Description
- Each
Current / Amperage Rating15 A
Industry Standard(s)UL Listed
ActionSnap Switch
Amperage Rating15 A
Contact ConfigurationTwo Position
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Operating Cycles30,000 Minimum
Special FeaturesStandard Product
Voltage Rating120 VAC
Voltage Rating Description120 VAC
Display SizeStandard Size
Description - InvoiceCOMBO, 15A 3W TOG, 15A 125V RCPT, WH
Harmonization Code8536698000
MSDS FlagNo
Current Rating15 A
BOX SIZE2.700x9.100x4.400 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack883778109850
Case Weight9.000 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
