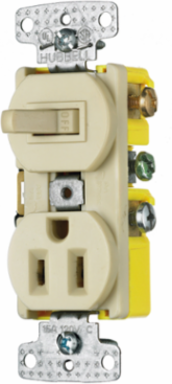

Bryant RC308I Three-Way Toggle Switch and 15A Single Receptacle Combo, 120 VAC, Side Wired, UL Listed
Bryant RC308I Three-Way Toggle Switch and 15A Single Receptacle Combo, 120 VAC, Side Wired, UL Listed
- MPN: RC308I
- UPC: 883778109843
- PPN: HBL-RC308I
- UNSPSC: 39122226
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$42.18/ EA
Description
One Three Way Toggle One Single Receptacle Combination Device, Residential 15A 120V AC, Self Grounding, Side Wired
Features
- Quiet snap action mechanism
- Self-grounding staple is standard
- Elongated strap with continuous plaster ears
- Standard Product
Specifications
Specifications
- Country of Origin
- China
- Width
- 2.000 in
- Performance
- Environmental - Operating temperature - -20°C to 60°C
- Actuator
- Toggle
- Application
- Residential
- Contact Rating
- 15A
- Number of Poles
- 1) Three Way
- Operating Temperature
- Max Continuous- 60 Degrees C, Minimum- -20 Without Impact
- Standard
- UL Listed
- Wattage
- 1800
- Conduit Connection
- None
- Display Size
- Standard Size
- Description - Invoice
- COMBO, 15A 3W TOG, 15A 125V RCPT, IV
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Current Rating
- 15 A
- BOX SIZE
- 2.600x9.100x4.500 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 883778109843
- Case Weight
- 8.850 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating15 A
Industry Standard(s)UL Listed
ActionSnap Switch
Amperage Rating15 A
Contact ConfigurationTwo Position
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Operating Cycles30,000 Minimum
Special FeaturesStandard Product
Voltage Rating120 VAC
Voltage Rating Description120 VAC
ConnectivitySide Wired
Number Of Poles1) Three Way
Freight Class Code06168002
Image Actual Or RepresentativeA
Material - Mounting HardwareMounting Screws
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.5 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Yes
