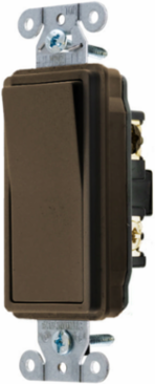

Hubbell Wiring Device-Kellems DS315 Decorator Rocker Switch, 15A 120/277V AC, Three Way, Brown, 3.91 Inch x 1.41 Inch x 1.01 Inch
Hubbell Wiring Device-Kellems DS315 Decorator Rocker Switch, 15A 120/277V AC, Three Way, Brown, 3.91 Inch x 1.41 Inch x 1.01 Inch
- MPN: DS315
- UPC: 783585151274
- PPN: HBL-DS315
- UNSPSC: 39122226
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$9.80/ EA
Description
Switches and Lighting Controls, Decorator Series Specification Grade, Rocker Switches, General Purpose AC, Three Way, 15A 120/277V AC, Back and Side Wired, Brown
Features
- Thread cleaning captive mounting screw
- Steel, zinc plated bridge is corrosion resistant
- Automatic self-grounding staple
Specifications
Specifications
- Country of Origin
- CN
- Dimensions
- 3.91 in x 1.41 in x 1.01 in
- Height
- 1.01 in
- Length
- 3.91 in
- Temperature Rise - Max.
- 30°C maximum at rated current
- Amperage Rating
- 15 A
- Number of Poles
- Single Pole
- Size
- 3.91 in x 1.41 in x 1.01 in
- Type
- Rocker/Decorator
- Weight
- 0.2 lb.
- Connectivity
- Back and Side Wired
- Number Of Poles
- Single Pole
- Wire Size
- #14 AWG to #10 AWG
- Description - Invoice
- SWITCH, DECO SER, 3W, 15A 120/277V, BR
- Harmonization Code
- 8536509040
- MSDS Flag
- No
- Sub Class Code
- A16A250
- Material
- Thermoplastic
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.1 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 10.000 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating15 A
Each - Width1.910 in
Industry Standard(s)UL Listed
PerformanceElectrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 15A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
ActionSPDT
ColorBrown
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
StandardUL Listed
Voltage Rating120-277 VAC
Width1.41 in
Dielectric StrengthWithstands 1500V AC minimum for 1 minute
StyleThree Way
Class CodeA16
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number2103;HBL2103
Current Rating15 A
SeriesGeneral Purpose
BOX SIZE3.548x9.858x4.298 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585151274
Case - Total Units50 EA
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Yes
