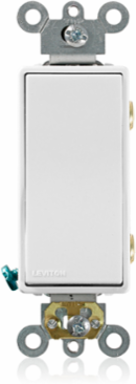

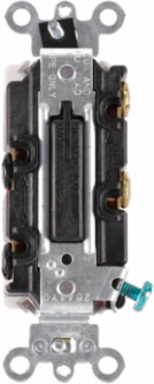

Leviton 5622-2W Decora Plus 20 Amp Double-Pole Quiet Rocker Switch, 120/277 Volt, Commercial Grade
- MPN: 5622-2W
- UPC: 078477515198
- PPN: LEV-5622-2W
CAD
$56.80
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
20 Amp, 120/277 Volt, Decora Plus Rocker Double-Pole AC Quiet Switch, Commercial Spec Grade, Self Grounding, Back & Side Wired, - White
Features
- Decora® brand Plus devices combine designer styling with all the benefits of rugged Commercial Grade construction. The robust product offering includes: single pole, double pole, 3 and 4-way switches, momentary and maintained contact switches, as well as pilot light and illuminated switches.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | False |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| NEMA | WD-1 & WD-6 |
| UL Fed Spec WS896E | File #E7458 |
| CSA C22.2 No. 111 | File #152105 |
|---|---|
| NOM | 057 |
| UL Standard | UL 20 |
Material Specifications
| Actuator Material | Thermoplastic |
|---|---|
| Color | White |
| Grounding Screw | Plated Steel |
| Terminal Screws | Brass |
| Body Material | Thermoplastic Polyester |
|---|---|
| Ground Clips | Brass |
| Strap Material | Steel |
Mechanical Specifications
| Product ID | Stamped on Strap |
|---|---|
| Terminal Accom. | 14-#10 AWG back wired; #14-#12 AWG side wired |
| Termination | Back or Side Wire |
| Screw Terminal Torque | 14-18 in-lbs |
|---|---|
| Terminal ID | Brass-Hot Black-Hot White-Neutral Green-Gnd |
Product Features
| Brand | Decora Plus |
|---|---|
| Function | Double-Pole |
| Device Type | Rocker Switch |
|---|---|
| Grade | Commercial Specification Grade |
Warranty
| Warranty | 10-Year Limited |
|---|
Environmental Specifications
| Flammability | Rated V-2 per UL 94 |
|---|
| Operating Temperature | -40°C to 65°C |
|---|
Electrical Specifications
| Amperage | 20 A |
|---|---|
| Endurance | 50,000 cycles minimum |
| Overload UL20 Test | 100 cycles of OL at 4.8 times rated current |
| Voltage | 120/277 VAC |
| Dielectric Voltage | Withstands 1500V for 1 minute |
|---|---|
| Grounding | Self-Grounding |
| Temperature Rise | Maximum 30 degrees C rise |
AC Horsepower Ratings
| HP Rating | 1HP-120V 2HP-240V |
|---|
