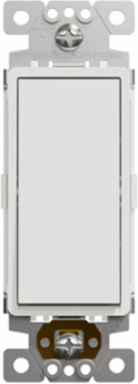

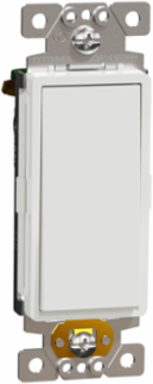

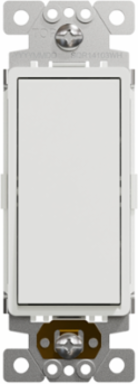

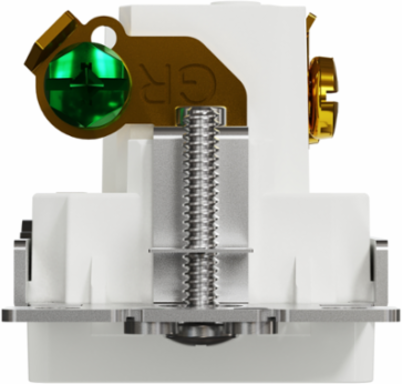

Schneider Electric SQR14103WH X Series 15A Rocker Switch 120/277V 30 Pack White
- MPN: SQR14103WH
- UPC: 785901534570
- PPN: SCH-SQR14103WH
CAD
$2.85
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

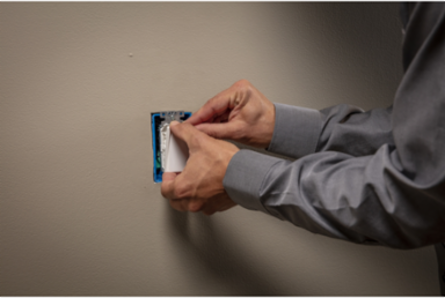

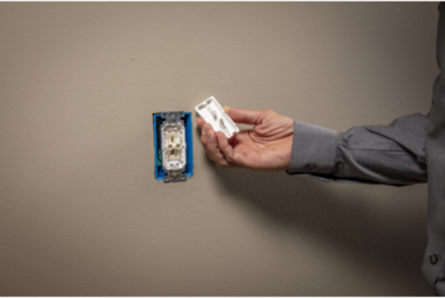

The Schneider Electric X Series 15A Single-Pole Switch with side wire clamps. The rated operational voltage of this switch is 120V and 277V. Sold in 30 pieces, the connection are screw terminal. Its matching mounting box can be recessed into the surface of the wall for flush mounting. This switch has a white frame. This switch has a width of 37 mm, a height of 103 mm and a depth of 35 mm. The UL certified switch without the rocker plate allows for use during rough-in phase. Its Ue rated operational voltage is 120VAC. Its Ie rated operational current is 15A. This device enables flush mounting. The dimensions are (W) 37mm x (H) 103mm x (D) 35mm. This product comes with 30 pieces per pack. This device is compliant with UL and cULus certification. Its mercury free and heavy metal free.
Features
- Featuring a sleek, low-profile White finish and a modern rectangular profile, this Decorator-style single-pole switch instantly elevates the aesthetic of any room. It is designed to fit perfectly into standard multi-gang wall plates, allowing you to modernize your home s electrical interface without the need for complex rewiring or specialized wall boxes.
- Rated for 15A at 120V AC, this heavy-duty switch is engineered to manage the unique inrush currents of high-efficiency LED and CFL bulbs, as well as traditional incandescent and halogen fixtures. This ensures flicker-free performance and a long mechanical lifespan, preventing the premature switch failure often caused by the high-demand drivers found in modern residential lighting.

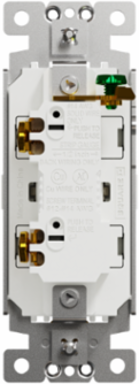

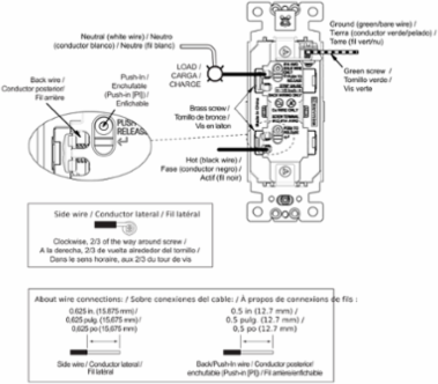

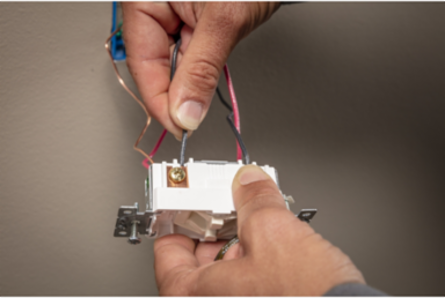

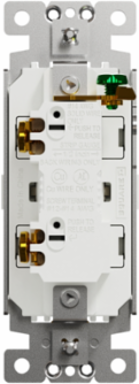

- Equipped with both side-wire screw terminals and time-saving rear push-in ports, this device accommodates #12 or #14 AWG copper wiring for maximum installation flexibility. The ergonomic design and shallow housing depth leave more room for wire management in the electrical box, significantly reducing the labor time required for whole-home renovations or DIY upgrades.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China, United States, Vietnam |
|---|
| Depth | 35 mm |
|---|
Physical Attributes
| Color | White |
|---|---|
| Main Color Tint | white |
| Color Tint | white |
|---|
Important Information Attributes
| Persona Type Ids | EU, EUA, LC, SC |
|---|---|
| [Ue] Rated Operational Voltage | 120 V, 277 V |
| Carbon Footprint Of The Distribution Phase [A4] | 0.037381475829196, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.03711978450312234, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 0.1 kg CO2 eq., 0.08261325771771208 |
| Local Publishable Date | 2026-06-23 |
| Return Indicator | Y |
| Stock Policy | 1 |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | RESIDENTIAL |
| Product Kit Identifier | N |
| Aesthetic Name | X Series |
| Earth Circuit | self earthing |
| Market Segment | residential |
| Mounting Mode | by screws |
| Network Type | AC |
| Number Of Modules | 1 |
| Product Availability | Stock - Normally stocked in distribution facility |
| Quantity Per Set | 30 pieces |
| Returnability | Yes |
| Surface Finish | Matte |
| Switch Function | 1-way |
| Total Lifecycle Carbon Footprint | 0.4 kg CO2 eq. |
| Main Color Tint | white |
| Database Version | 2026-04 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | Establish, support and interrupt the rated current I and rated voltage U for a wall-mounted installation, and for the reference service life of the product of 20 years.N/A |
| Functional-unit Unit | unit |
| Energy Model - Installation [A5] | No energy used |
| Energy Model - End Of Life [C1-c4] | Global, European and French datasets are used. |
| Height Nominal | 103 mm |
| Certificate Agency | cULus |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536509035 |
| Persona Type Names | End User, Consumer, Contractor, Electrician |
|---|---|
| Connections - Terminals | phase and neutral 2 screw terminal 14 AWG...12 AWG) copper, phase and neutral 2 push-in termination 14 AWG), solid copperearth 1 screw terminal copper |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0 kg CO2 eq., 0.03350106071515448 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.2 kg CO2 eq., 0.17540792482866546 |
| Local Data Status | Publishable |
| Pre Comm Date | 2020-03-11 |
| Stocking Flag | Y |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2532 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Residential |
| Actuator | dolly |
| Device Application | control |
| Energy Efficiency Optimized | False |
| Material | plastic: strapmetal: fixing frame |
| Network Frequency | 60 Hz |
| Number Of Gangs | 1 gang |
| Number Of Poles | 1 |
| Product Or Component Type | switch |
| Range | Square D X Series |
| Software Version | v6.3.4 |
| Sustainable Packaging | Yes |
| Targeted Channel | distributor |
| Color Tint | white |
| Pep Code | ENVPEP2606004EN |
| Pep Verification Date | 2026-07-10 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Energy Model - Manufacturing [A1-a3] | Electricity mix; Production mix; low voltage; 2022; Vietnam, VN |
| Energy Model - Use [B6] | Electricity mix; Consumption mix; Low voltage; 2022; United States, US |
| Recyclability Potential In % | 33 |
| Width Nominal | 37 mm |
| [Ie] Rated Operational Current Ac | 15 A |
| Package Weight(Lbs) | 58.0 g |
| Warranty (In Months) | 24 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 0.36602350359385033 |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP2606004EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Reach Regulation | Free of Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2606004EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Verification Date | 2026-07-10 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
General Attributes
| Product Or Component Type | switch |
|---|
ETIM
| ETIM 8 | EC001590 |
|---|
| ETIM 9 | EC001590 |
|---|
Contractual Warranty Attributes
| Warranty Period | 2 years |
|---|
| Warranty | 2 years |
|---|
Overview Attributes
| Device Presentation | mechanism with fixing frame |
|---|
