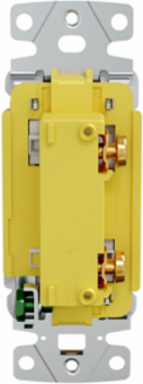

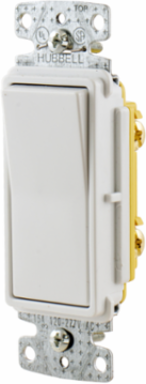

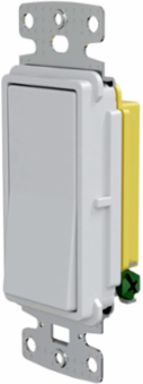

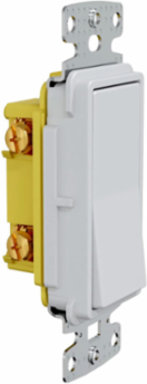

Bryant RSD115W Residential Grade Rocker Switch, Single Pole, 15A 120/277V AC, Push Wired
- MPN: RSD115W
- UPC: 883778101137
- PPN: HBL-RSD115W
- UNSPSC: 39122226
CAD
$5.89
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
TradeSelect, Switches and Lighting Controls, Decorator Switch, Residential Grade, Rocker Switch, General Purpose AC, Single Pole, 15A 120/277V AC Push Back and Side Wired
Features
- Smooth, quiet rocker
- Self-grounding feature is standard
- Ultrasonically welded cover and base
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Industry Standard(s)
- CSA Certified;Listed to UL Standard 20
- Standard
- CSA Certified;Listed to UL Standard 20
- Description - Invoice
- RESI ROCKER SW, SP, 15A 120/277V, WH
- Harmonization Code
- 8536509040
- MSDS Flag
- No
- BOX SIZE
- 2.800x7.400x4.400 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 883778101137
- Case - Total Units
- 100 EA
- Each - Pack Description
- Each
- Pallet Height
- 48.000 in
- Pallet Weight
- 1332.000 lb.
Width1.470 in
PerformanceElectrical - Dielectric voltage - Withstands 1,500V AC minimum for 1 minute;Electrical - Endurance - 30,000 cycles minimum;Electrical - Max. working voltage - 120V;Electrical - Overload - 1.5 times rating;Environmental - Flammability - UL V0;Environmental - Operating temperatures - Maximum continuous 60°C;minimum -20°C (without impact);Mechanical - Terminal accommodation - Back and side wire: #14 AWG min. - #12 AWG max. solid and stranded copper wire only;push wire: #14 AWG solid copper wire only
General Literature Asset 1 Display TextResidential Catalog
Freight Class Code06168002
Image Actual Or RepresentativeA
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.600 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight14.900 lb.
Lowest Level UOMEach
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
