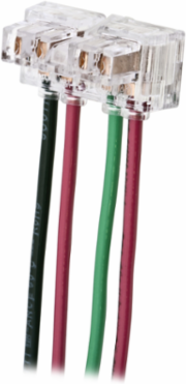

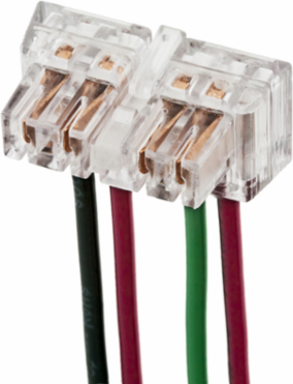

Hubbell Wiring Device-Kellems SNAP3W2NA SNAPConnect® Three Way Connector, 6.5 Inch, 15/20A
Hubbell Wiring Device-Kellems SNAP3W2NA SNAPConnect® Three Way Connector, 6.5 Inch, 15/20A
- MPN: SNAP3W2NA
- UPC: 783585189963
- PPN: HBL-SNAP3W2NA
- UNSPSC: 39122211
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$20.95/ EA
Description
Switches and Lighting Controls, Industrial/Commercial Grade, SNAPConnect® Series, Three Way Connector, Stranded Wire, 15/20A
Features
- Clear terminal housing
- No exposed live parts
- Fully insulated
Specifications
Certifications
- EU RoHS Indicator
- Yes
Specifications
- Country of Origin
- China
- Height
- 0.84 in
- Length
- 6.5 in
- Application
- Accessories
- Size
- 6.5 in x 1.39 in x 0.84 in
- Type
- Pigtailed Connector
- Engineering Drawing 1 Display Text
- SNAP3W2NA AutoCAD Drawing
- General Literature Asset 2 Display Text
- Leaders In Screwless Termination
- Style
- For Three Way General Purpose and Illuminated
- Class Code
- A16
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A16A250
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 20 EA
- Case Weight
- 10.418 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 45.000 in
- Pallet Weight
- 778.500 lb.
Dimensions6.5 in x 1.39 in x 0.84 in
Industry Standard(s)UL Listed
Standards - RoHS Compliance StatusCM
ColorClear
StandardUL Listed
Width1.39 in
General Literature Asset 1 Display TextHealthcare Product Solutions
General Literature Asset 3 Display TextSNAPConnect® and EdgeConnect® screwless termination
Wire Size#12 AWG
Description - InvoiceSWITCHSNAP,CONN,THREEWAY,STR,NA
Harmonization Code8544429090
MSDS FlagNo
SeriesSNAPConnect® Series
BOX SIZE3.700x9.900x4.400 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585189963
Case - Total Units200 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585189962
Pallet Length48.000 in
Pallet Width40.000 in
