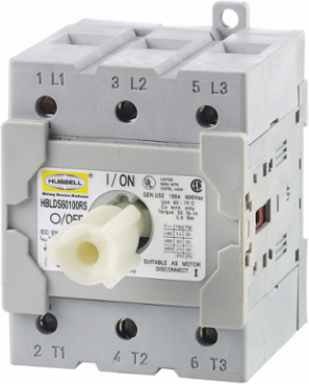

Hubbell Wiring Device-Kellems HBLDS60100RS Industrial Grade Disconnect Switch, Three Pole, 60A 600V AC
- MPN: HBLDS60100RS
- UPC: 783585955216
- PPN: HBL-HBLDS60100RS
- UNSPSC: 39122205
CAD
$778.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Switches and Lighting Controls, Industrial Grade, Disconnect Switches, Replacement Switch, Three Pole, 60A 600V AC, Screw Terminals, Gray
Features
- Industrial Grade
- Disconnect Switches
- Replacement Switch
- Three Pole
Documentation & Downloads
Specifications
Key Specifications
- General Literature Asset 1 Display Text
- Improved Short Circuit Current Ratings (SCCR)
- General Literature Asset 3 Display Text
- Pulp & Paper Solutions
- Current / Amperage Rating
- 60/100 A
- Industry Standard(s)
- UL Listed
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstand 3,000V AC;Electrical - Max Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V-0 classification;Environmental - Ingress Protection - IP67 Suitability;Environmental - Operating Temperatures - Max Continuous- 75 °C, Minimum -40 ° w/o Impact;Mechanical - Impact Resistance - In accordance with UL746C;Mechanical - Product Identification - Identification and ratings are a part of the external label and molded into the receptacle mount.;Mechanical - Terminal Identification - Terminals identified in accordance with North American and International conventions
- Amperage Rating
- 60/100 A
- Standard
- UL Listed
- Dielectric Strength
- Withstands 3000V AC minimum
- Class Code
- A16
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- D5571201
- Series
- Non-Fused;Fused
- BOX SIZE
- 5.100x20.600x10.000 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585955216
- Case Weight
- 14.250 lb.
- Lowest Level UOM
- Each
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
General Literature Asset 2 Display TextIEC Pin & Sleeve Devices
Country of OriginPoland
Width4.200 in
Ingress ProtectionIP67
Standards - RoHS Compliance StatusCM
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
TypeAccessories
StyleReplacement Switches
Description - InvoiceREP DISCO SWITCH, 60A,
Harmonization Code8536509901
MSDS FlagNo
Sub Class CodeA16A260
Base Unit of MeasureEA
Carton - Gross Weight per Pack14.450 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Each - Pack DescriptionEach
Pallet Height50.900 in
Pallet Weight495.688 lb.
NAICS Code3353146111
