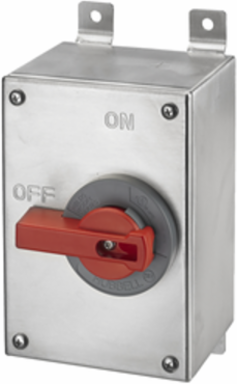

Hubbell Wiring Device-Kellems HBLDS6SSAC Switches and Motor Controls, Industrial Grade, Disconnect Switches, Unfused Switch, Three Pole, 60A 600V AC, Screw Terminals, Stainless Steel, NEMA 4X Enclosure, With Aux Contact
Hubbell Wiring Device-Kellems HBLDS6SSAC Switches and Motor Controls, Industrial Grade, Disconnect Switches, Unfused Switch, Three Pole, 60A 600V AC, Screw Terminals, Stainless Steel, NEMA 4X Enclosure, With Aux Contact
- MPN: HBLDS6SSAC
- UPC: 783585372570
- PPN: HBL-HBLDS6SSAC
- UNSPSC: 39122205
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1896.34/ EA
Description
Switches and Motor Controls, Industrial Grade, Disconnect Switches, Unfused Switch, Three Pole, 60A 600V AC, Screw Terminals, Stainless Steel, NEMA 4X Enclosure, With Aux Contact
Features
- Formed in nonporous 304 stainless steel
- IP69k and Type 4X,12K water ingress protection
- Certified by NSF for hygiene in food processing applications
- Highly visible red handle which meets OSHA Lockout/Tagout capabilities
- Accepts up to 2 Auxiliary contacts
Specifications
Specifications
- Country of Origin
- Poland
- Dimensions
- 11.63 in x 7.3 in x 5.39 in
- Industry Standard(s)
- UL Listed
- Length
- 11.63 in
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current & voltage;Electrical - Dielectric Voltage - Withstands 3000V AC minimum;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V0 Classification;Environmental - Operating Temperature - Max Continuous 75°C,Min Continuous -40°C w/o impact;Environmental - UV Resistance - All materials are UV stabilized;Mechanical - Impact Resistance - In accordance with UL 746C;Mechanical - Mounting - Stainless Steel - Feet are fixed;Mechanical - Product Identification - Identification and ratings are part of external label;Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions
- Amperage Rating
- 60 A
- Enclosure
- Type 4X, IP69k
- Size
- 11.63 in x 7.3 in x 5.39 in
- Type
- Disconnect Switches
- Engineering Drawing 1 Display Text
- HBLDS6SSAC AutoCAD Drawing
- General Literature Asset 2 Display Text
- Circuit-Lock® Motor Disconnects
- Dielectric Strength
- Withstands 3000V AC minimum
- Phase
- Three Phase
- Style
- Heavy Duty
- Description - Invoice
- DISCONNECT, 60A UNFUSED, 4X, SS, W/AC
- Harmonization Code
- 8536509025
- MSDS Flag
- No
- Current Rating
- 60 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 10.550 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1
- Each - Pack Description
- Each
Current / Amperage Rating60 A
Height5.39 in
Ingress ProtectionIP69K
Mounting MethodFeet are fixed
Standards - RoHS Compliance StatusCM
ApplicationLabelless
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
StandardUL Listed
Width7.3 in
General Literature Asset 1 Display TextSafety Product Guide
General Literature Asset 3 Display TextHealthcare Application Guide
Enclosure TypeType 4X, IP69k
ShapeSquare Top
Class CodeA16
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA16A260
SeriesNon-Fused
BOX SIZE8.000x13.200x9.300 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00783585372570
Case Weight10.550 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
