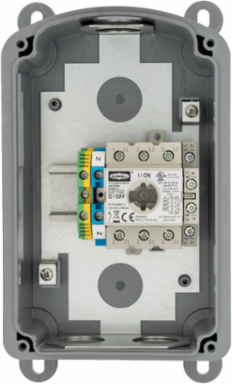

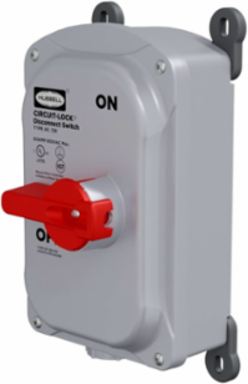

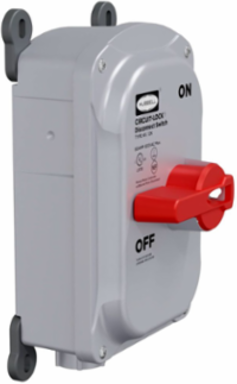

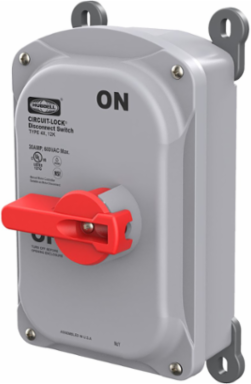

Hubbell Wiring Device-Kellems HBLDS30AC 3 Pole Motor Disconnect Switch, 30A 600V AC, IP69k, NEMA Type 4X
Hubbell Wiring Device-Kellems HBLDS30AC 3 Pole Motor Disconnect Switch, 30A 600V AC, IP69k, NEMA Type 4X
- MPN: HBLDS30AC
- UPC: 783585763033
- PPN: HBL-HBLDS30AC
- UNSPSC: 39121304
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$528.58/ EA
Description
Industrial Grade, Motor Disconnect, Unfused, 3 Pole, 30A 600V AC, Screw Terminals, IP69k, NEMA Type 4X, 12 Non-Metallic Sloped Top Enclosure, AC1 Aux Contact, cULus, NSF, CE, UL 508 / UL 60947-4-1A
Features
- Constructed from corrosion and impact resistant UV stabilized non-metallic material
- Rounded sloped top enclosure supports best practices in hygienic design by shedding dirt and debris
- IP69k and Type 4X,12K water ingress protection and Certified by NSF for hygiene in food processing applications
- Highly visible red handle can be locked in the OFF position as a method of compliance with OSHA Lockout/Tagout requirements
- Product rating are permanently laser-marked and will not wash off
- Factory installed HBLAC1 auxiliary contact is "Break After Main Break", 1 set of N/O contacts, 1 set of N/C contacts
Specifications
Specifications
- Country of Origin
- PL
- Description - Slang
- Industrial Grade, Motor Disconnect, Unfused, 3 Pole, 30A 600V AC, Screw Terminals, IP69k, NEMA Type 4X, 12 Non-Metallic Sloped Top Enclosure, AC1 Aux Contact
- Each - Width
- 5.500 in
- Horsepower - Maximum
- 15
- Industry Standard(s)
- cULus Listed
- Mounting Method
- External fully adjustable feet
- Application
- Heavy Duty Industrial and/or Washdown
- Shape
- Rounded Top
- Type
- Disconnect Switches
- Dielectric Strength
- Withstands 3000V AC minimum
- Environmental Conditions
- Indoor and Outdoor
- Operating Temperature
- Without Impact Maximum continuous 75°C and minimum -40 °C
- Wire Size
- #14 AWG to #8AWG
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Material - Mounting Hardware
- Stainless Steel Screw Mounting
- Base Unit of Measure
- EA
Current / Amperage Rating30 A
Width5.500 in
Height4.12 in
Hub Size3/4"
Ingress ProtectionIP69k, NEMA Type 4X, 12
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current & voltage;Electrical - Dielectric Voltage - Withstands 3000V AC minimum;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V0 Classification;Environmental - Operating Temperature - Max Continuous 75°C,Min Continuous -40°C w/o impact;Environmental - UV Resistance - All materials are UV stabilized;Mechanical - Impact Resistance - In accordance with UL 746C;Mechanical - Mounting - Non-Metallic - External fully adjustable feet;Mechanical - Product Identification - Identification and ratings are part of external label;Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions
ColorGray
StandardcULus Listed
Weight2.8 lb.
Enclosure TypeIP69k and UL Type 4X, 12
Operating Cycles10,000 Cycles Minimum
StyleHeavy Duty
Class CodeA16
Harmonization Code8536509025
Sub Class CodeA16A260
SeriesNon-Fused
Carton - SCC-14 Next Lower Level Sub Pack00783585763033
